Item 16, 17 and 18: Main Control Valve Body Screws Installation Note

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Using the special tools, install the main control valve body and loosely install the screws.
    1. Install the short screw.
    2. Install the screw with the larger head.
    3. Install the remaining screws.

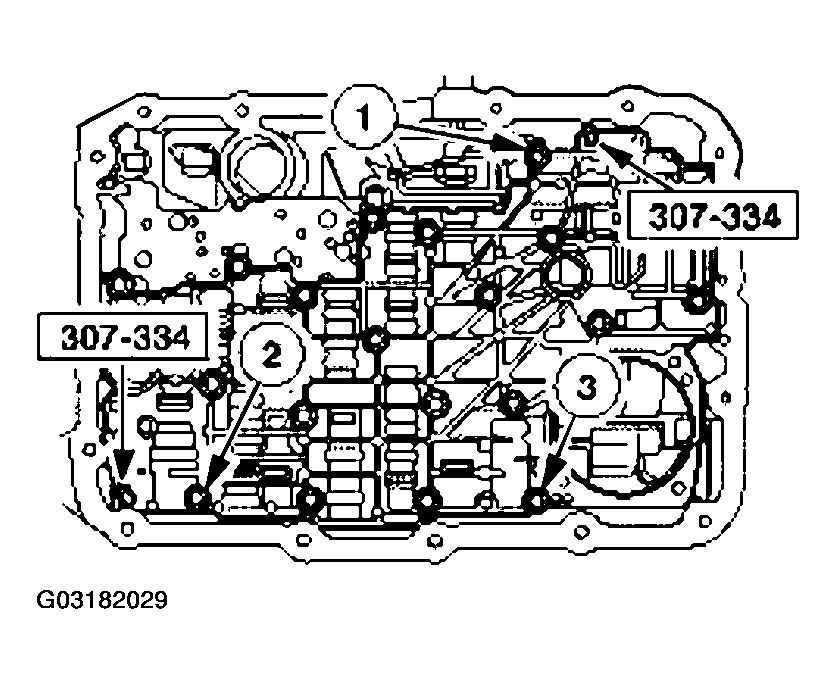

    Fig 1: Installing Main Control Valve Body Screws
    G03182029Courtesy of FORD MOTOR CO.
  2. Remove the special tools, and loosely install the screw.

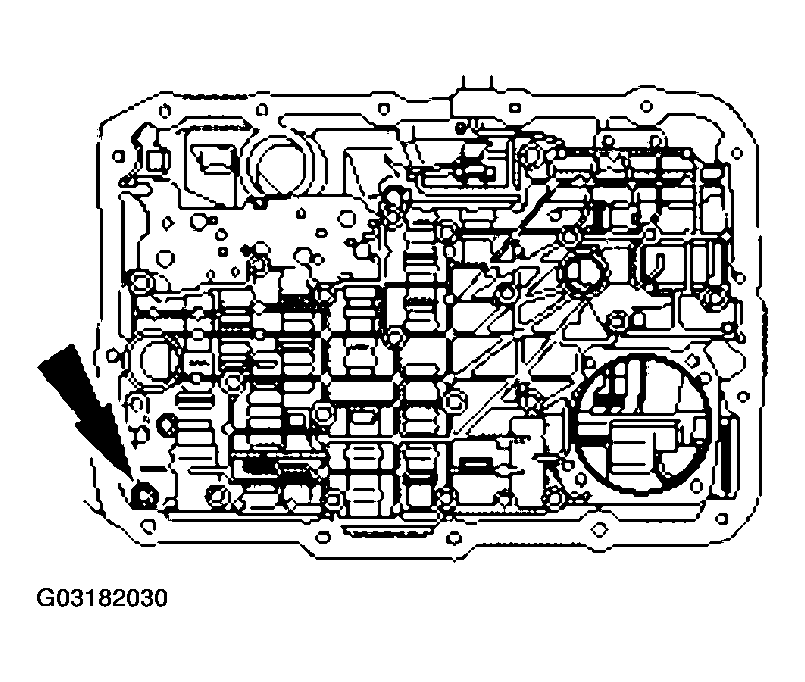

    Fig 2: Loosely Installing Screw
    G03182030Courtesy of FORD MOTOR CO.
  3. Tighten the screws in the sequence shown.

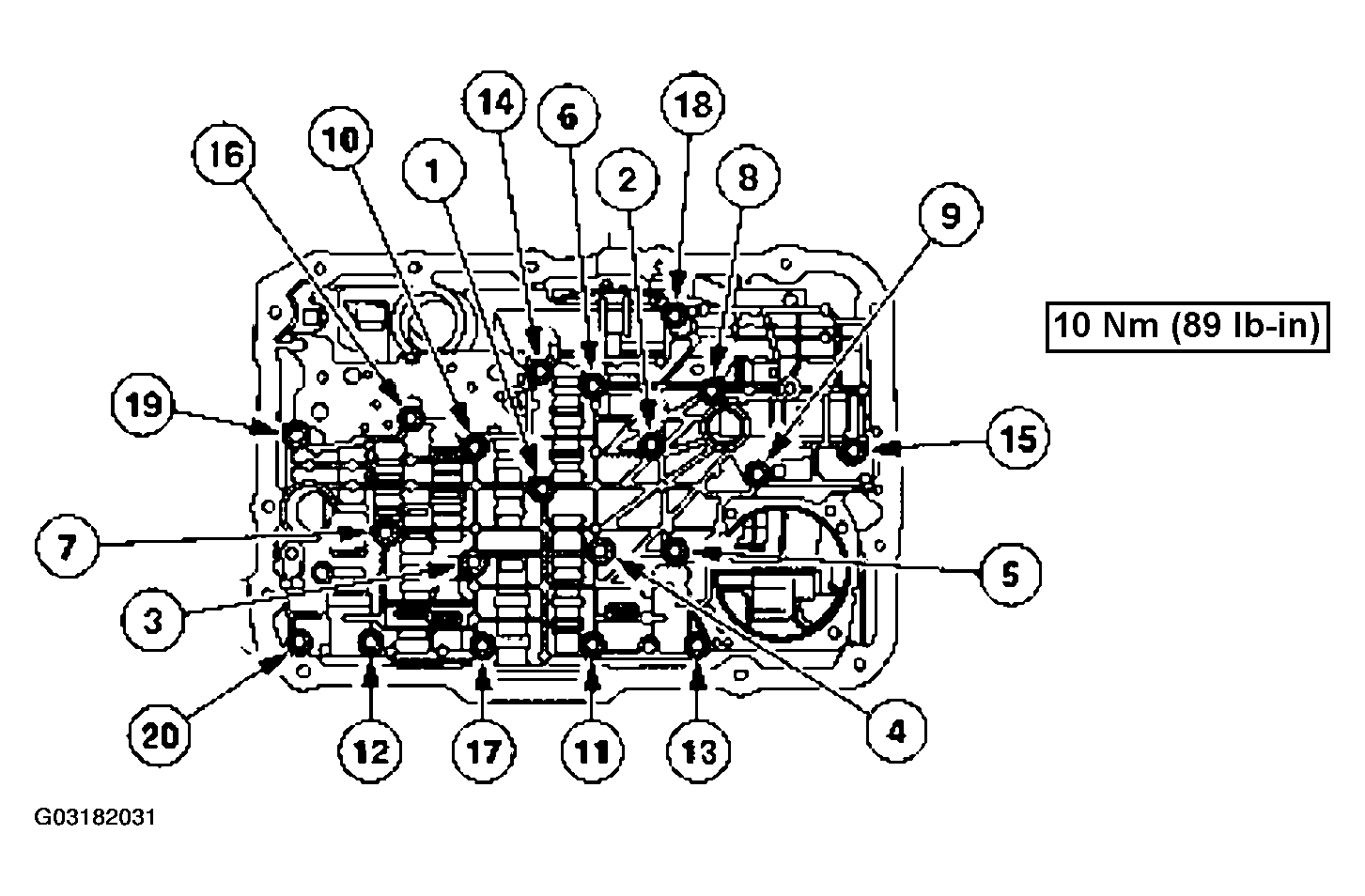

    Fig 3: Identifying Main Control Valve Body Screws Tightening Sequence
    G03182031Courtesy of FORD MOTOR CO.
