Item 12: Reverse Servo Screws Installation Note

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the reverse servo. Tighten the screws in the sequence shown.

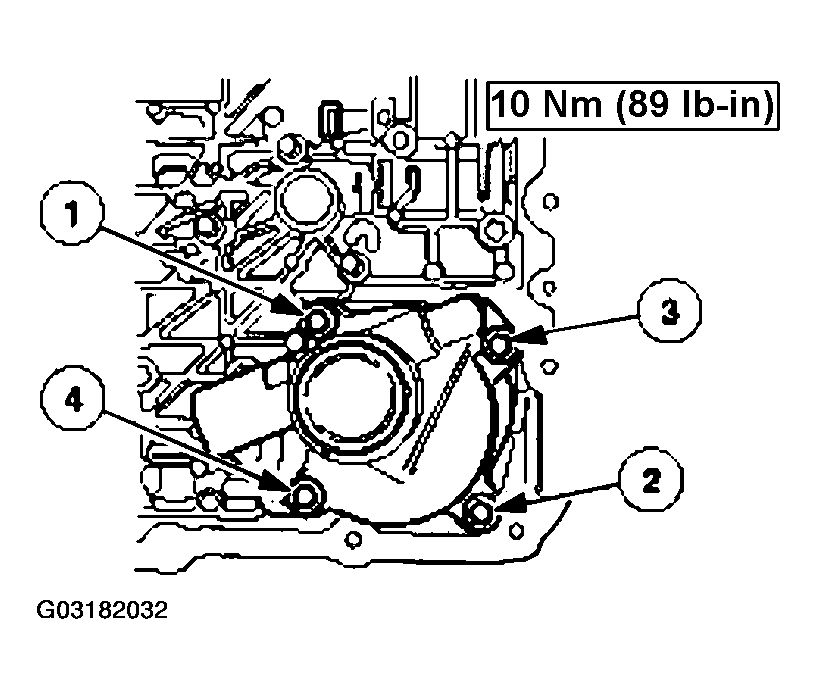

    Fig 1: Installing Reverse Servo
    G03182032Courtesy of FORD MOTOR CO.
