Extension Housing Seal - 4x4: Notes

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

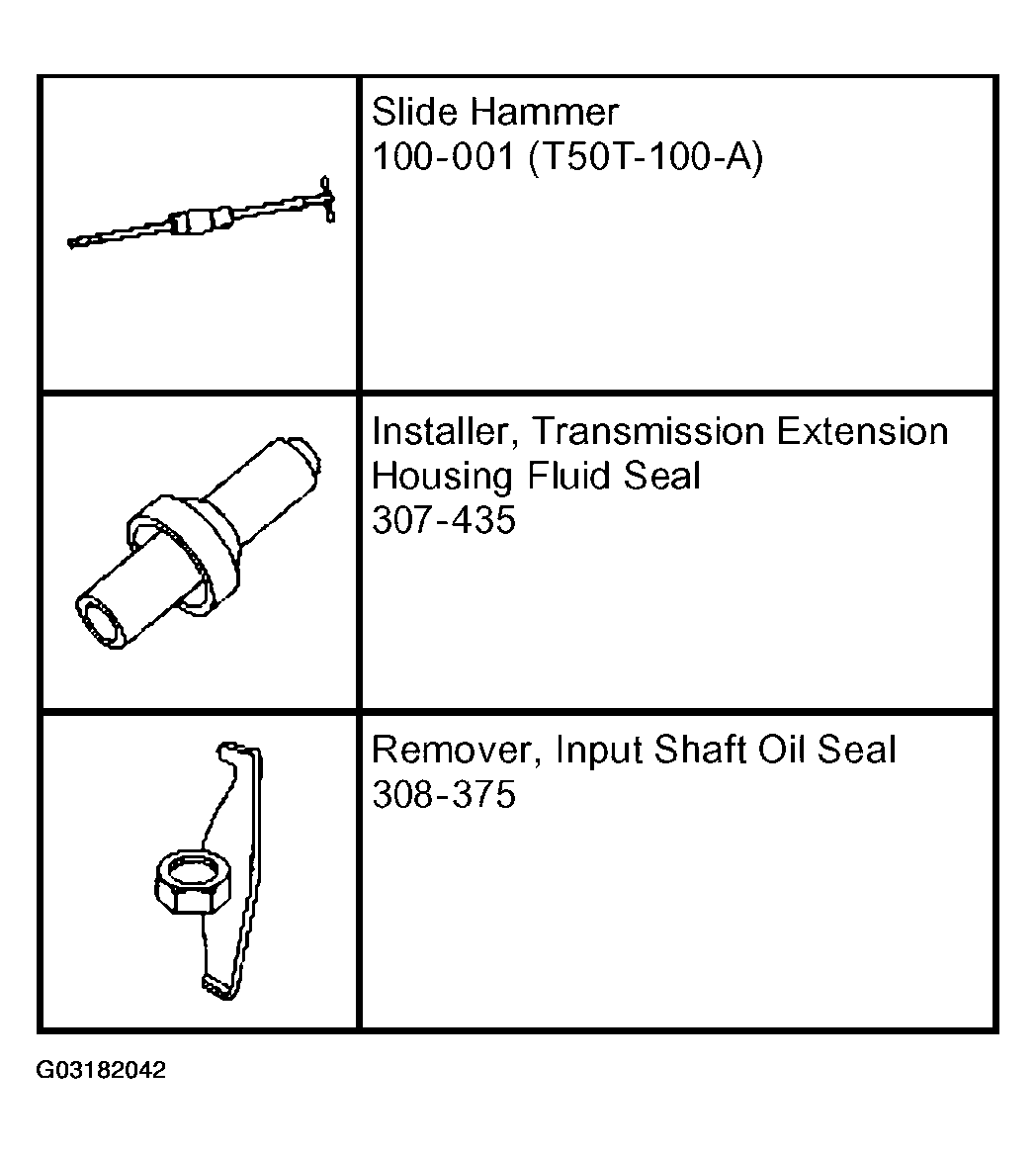

Fig 1: Identifying Special Tool(s)
G03182042Courtesy of FORD MOTOR CO.
  1. Remove the transfer case assembly. For additional information, refer to TRANSFER CASE .
  2. Remove the components in the order indicated in the following illustration and table.
  3. To install, reverse the removal procedure.

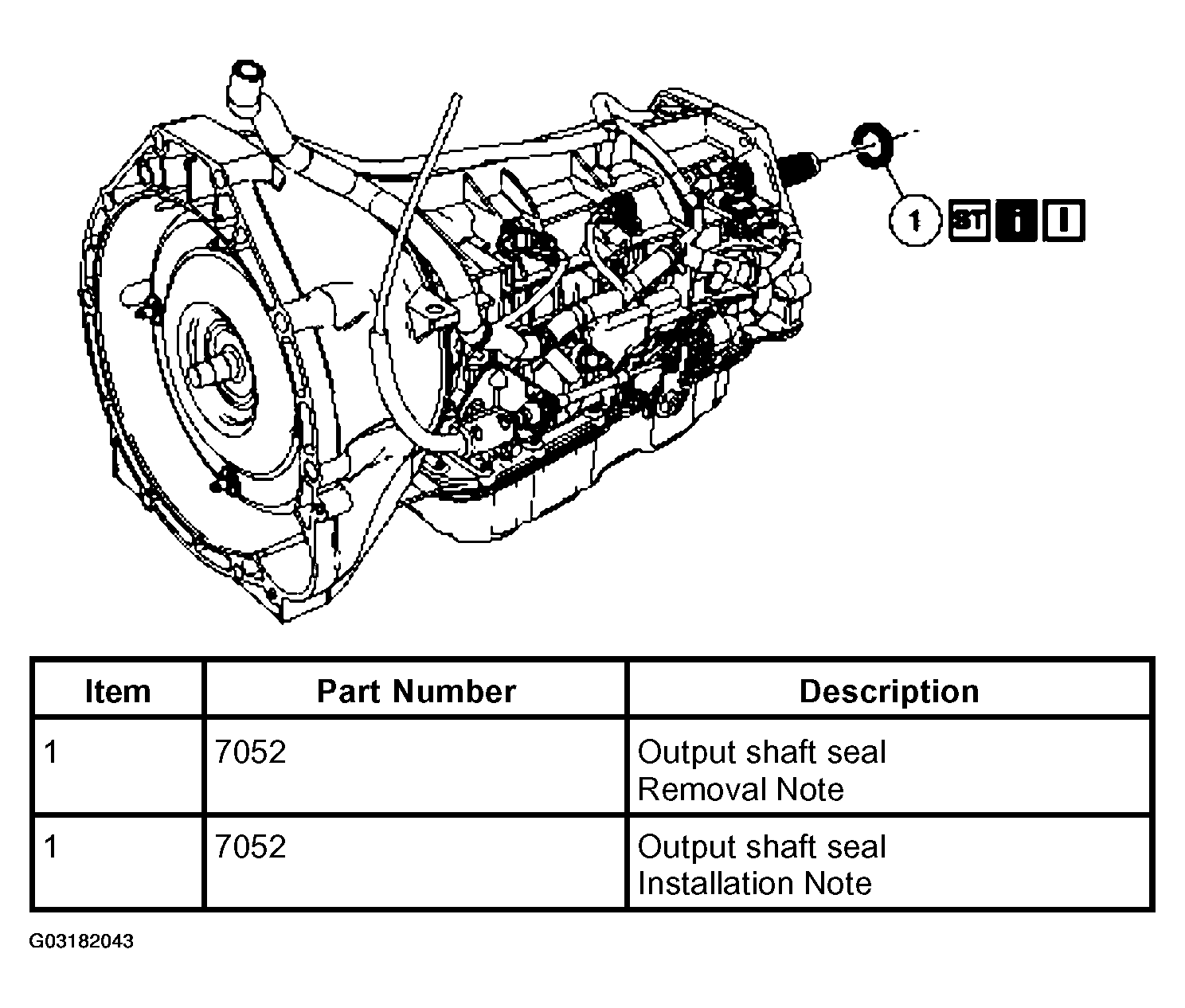

    Fig 2: Identifying Removal Order Of Extension Housing Seal - 4X4
    G03182043Courtesy of FORD MOTOR CO.
  4. Carry out fluid level check. For additional information, refer to TRANSMISSION FLUID LEVEL CHECK .
