Extension Housing Gasket - 4x4: Notes

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the transfer case assembly. For additional information, refer to TRANSFER CASE .
  2. Remove the components in the order indicated in the following illustration and table.
  3. To install, reverse the removal procedure.

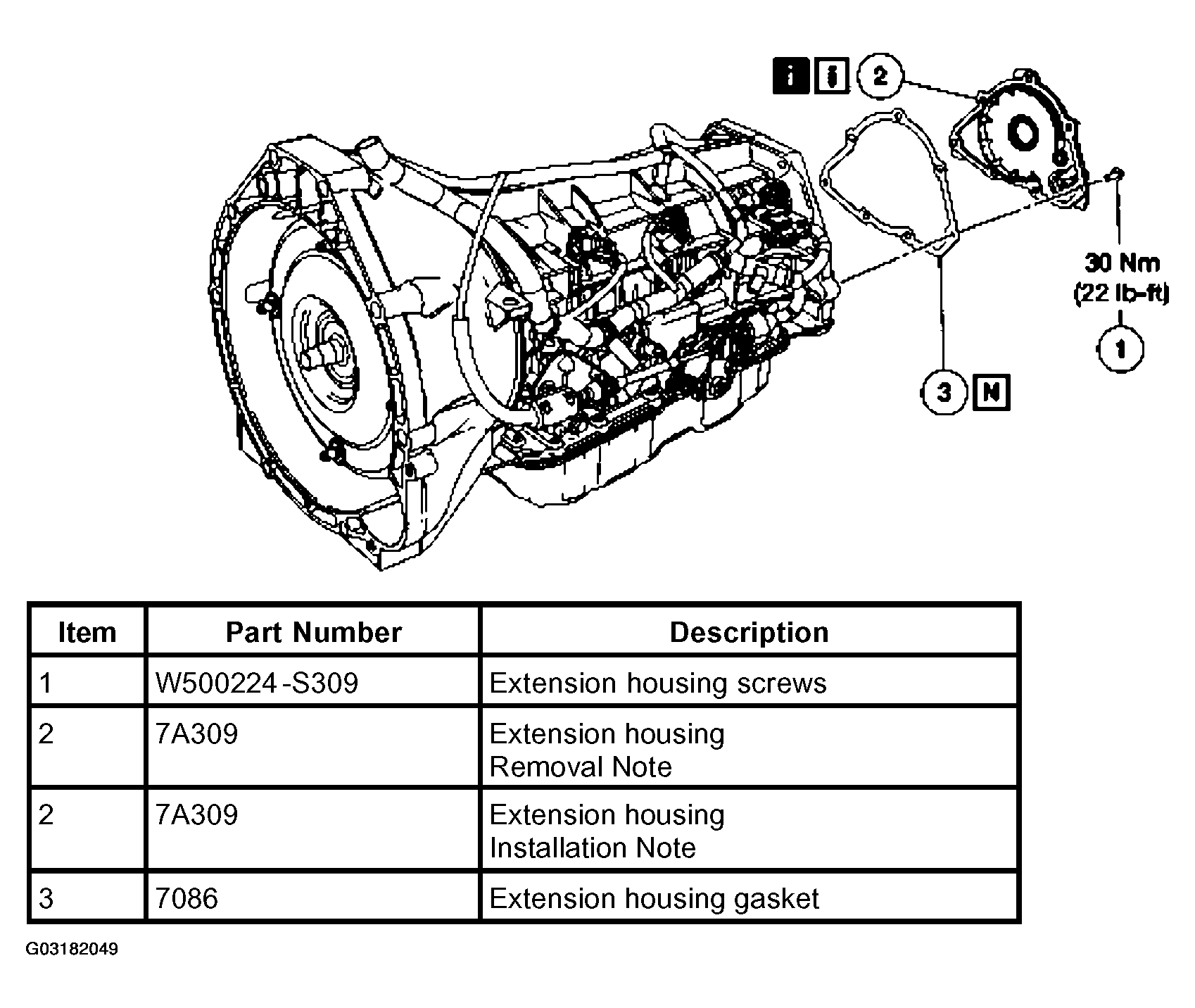

    Fig 1: Identifying Removal Order Of Extension Housing Gasket - 4X4
    G03182049Courtesy of FORD MOTOR CO.
  4. Carry out fluid level check. For additional information, refer to TRANSMISSION FLUID LEVEL CHECK .
