Extension Housing Gasket - 4x2: Notes

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the driveshaft. For additional information, refer to DRIVELINE SYSTEM .
  2. Support the transmission with a suitable jack.
  3. Remove the rear transmission support insulator. For additional information, refer to TRANSMISSION SUPPORT INSULATOR - 4X2 .
  4. Remove the components in the order indicated in the following illustration and table.
  5. To install, reverse the removal procedure.

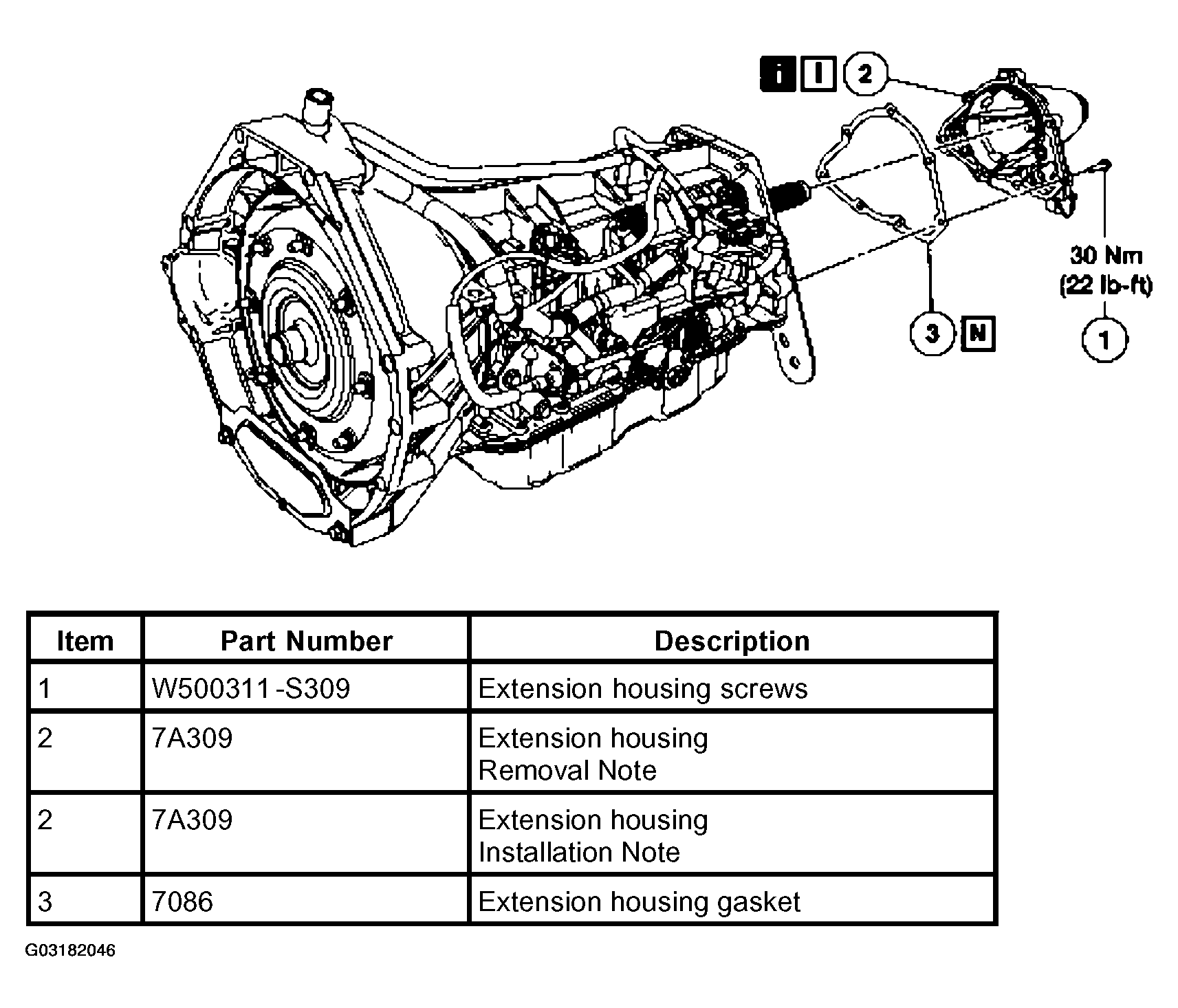

    Fig 1: Identifying Extension Housing Gasket - 4X2
    G03182046Courtesy of FORD MOTOR CO.
  6. Carry out fluid level check. For additional information, refer to TRANSMISSION FLUID LEVEL CHECK .
