Item 1: TR Sensor Electrical Connector Removal Note

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Move the rubber boot back to gain access to the electrical connector.

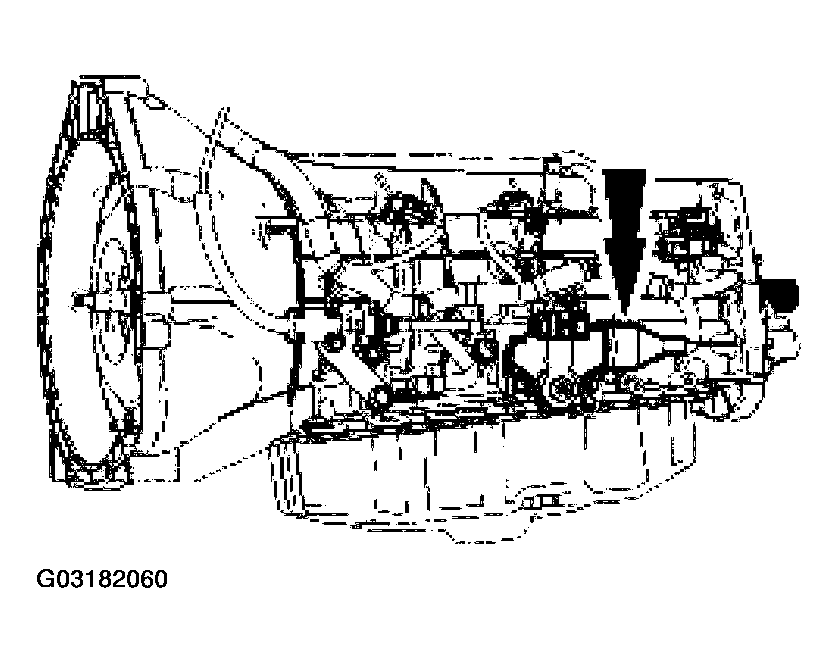

    Fig 1: Moving Rubber Boot Back
    G03182060Courtesy of FORD MOTOR CO.
  2. Disconnect the digital TR sensor electrical connector.

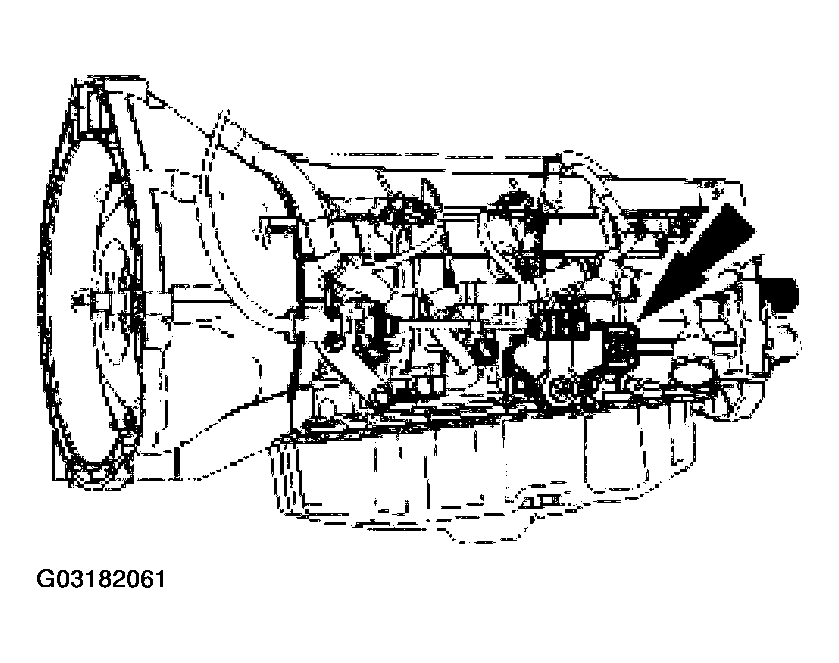

    Fig 2: Disconnecting Digital TR Sensor Electrical Connector
    G03182061Courtesy of FORD MOTOR CO.
