Item 94: Manual Control Lever Inner Nut Disassembly Note

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
    CAUTION: To avoid damage, make sure the wrench does not strike the manual valve inner lever pin.

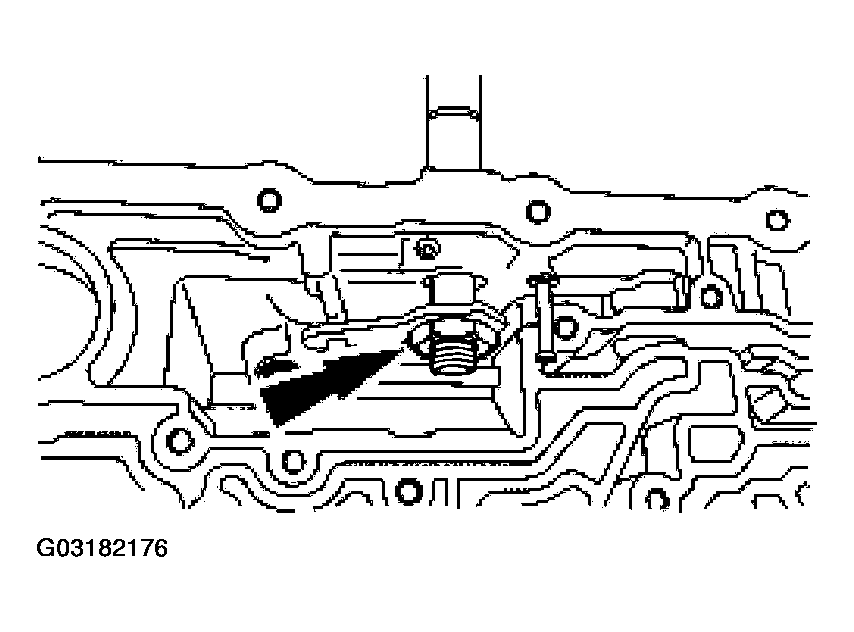

    Fig 1: Removing Nut
    G03182176Courtesy of FORD MOTOR CO.
  1. Remove the nut.
