Item 93: Output Shaft Thrust Washer Disassembly Note

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Tag and identify the No. 11 output shaft thrust washer.

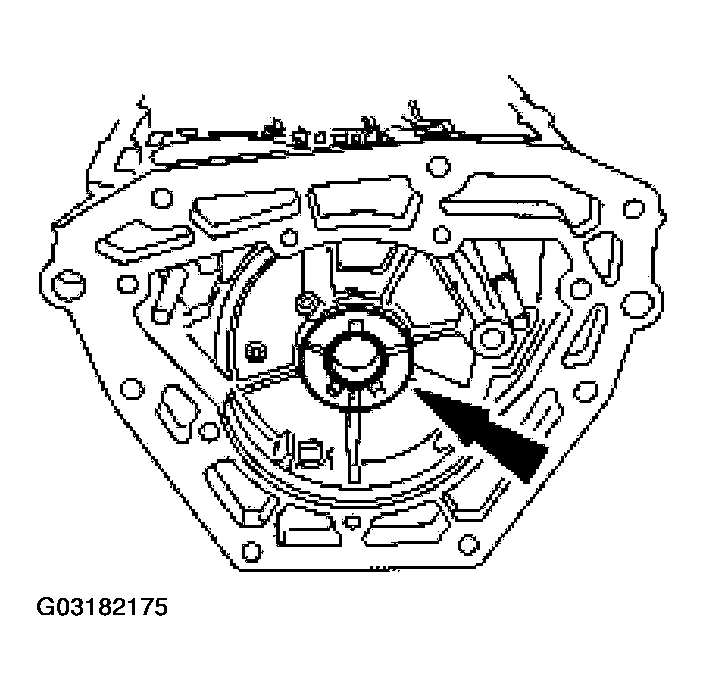

Fig 1: Removing Output Shaft Thrust Washer

Courtesy of FORD MOTOR CO.

Remove the output shaft thrust washer.
