Item 90: Reverse Brake Drum and Clutch Assembly Disassembly Note

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The inner race of the rear one-way clutch is not removable. It is repaired in the case.

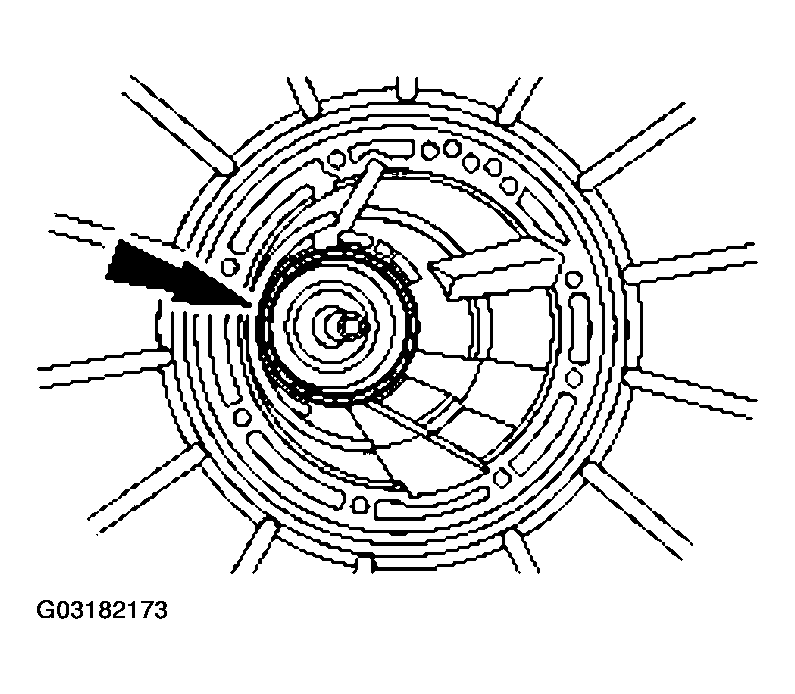

Fig 1: Removing Low/Reverse Brake Drum

Courtesy of FORD MOTOR CO.

Remove the low/reverse brake drum and one-way clutch assembly by rotating it clockwise.
