Item 85: Output Shaft Retaining Ring Disassembly Note
WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

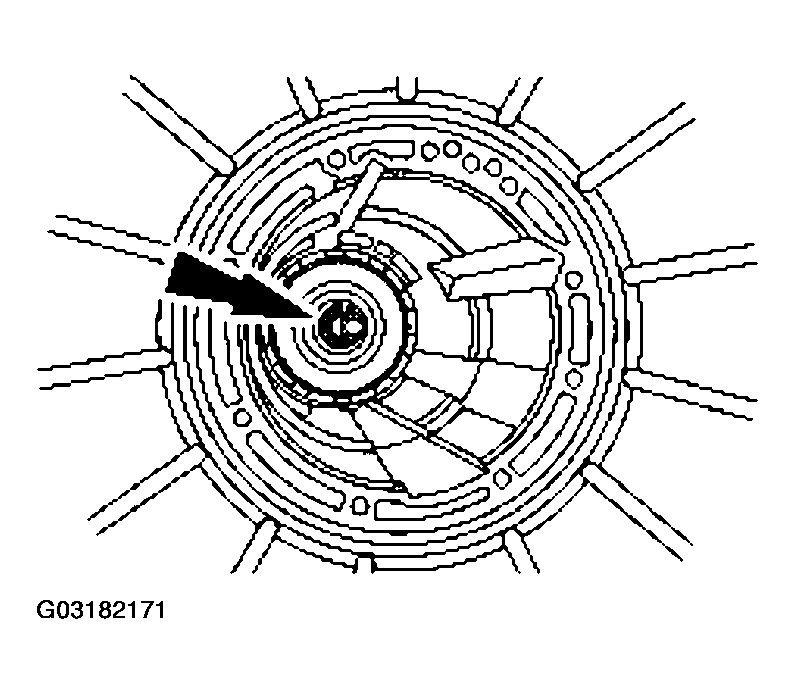

- While holding the output shaft, remove and discard the output shaft retaining ring.
WARNING:
The output shaft may fall out after removing the snap ring. Failure to follow these instructions may result in personal injury.
CAUTION:
Discard the output shaft retaining ring. A new retaining ring must be used for assembly.
