Item 83: Center Shaft and Forward Clutch Cylinder Bearing Assembly No. 9 Disassembly Note

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
    NOTE: Tag and identify the No. 9 low/reverse planetary carrier thrust bearing.

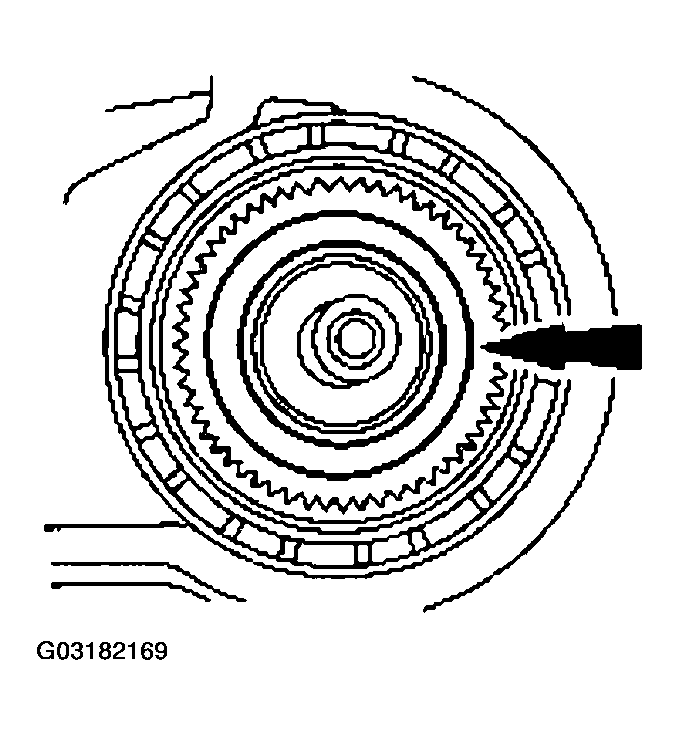

    Fig 1: Identifying No. 9 Low/Reverse Planetary Carrier Thrust Bearing
    G03182169Courtesy of FORD MOTOR CO.
  1. Remove the thrust bearing.
