Item 70: Intermediate Brake Drum Assembly Disassembly Note

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
    NOTE: The No. 5 forward clutch cylinder thrust bearing may come out with the intermediate brake and direct clutch drum.

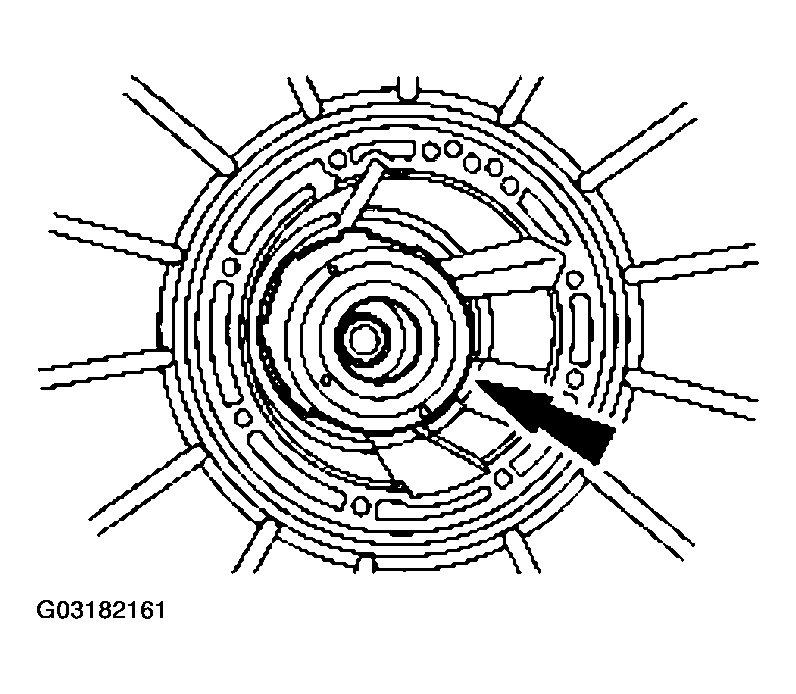

    Fig 1: Removing Direct Clutch Drum
    G03182161Courtesy of FORD MOTOR CO.
  1. Remove the direct clutch drum.
