Item 55: Overdrive Intermediate Band Disassembly Note
WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

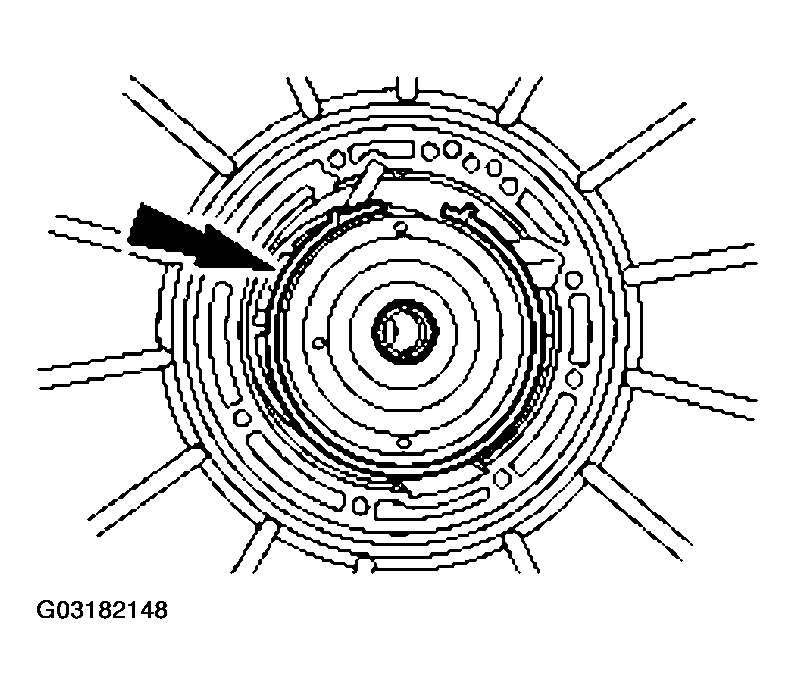

- Remove and inspect the overdrive band. Check the following conditions for installing a new band:
- Inspect for glazing.
- Inspect for missing friction material.
- Inspect for material flaking.
- Inspect for damage to the anchor pins.
CAUTION:
Identify the anchor and apply ends of the overdrive band.
NOTE:
The new overdrive band is dark in color. This is a normal condition of the band. Hairline cracks in the band are also considered normal. Do not install a new band based solely on the color.
