Item 54: Band Apply Strut Disassembly Note

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
    NOTE: Tag and identify part for assembly.

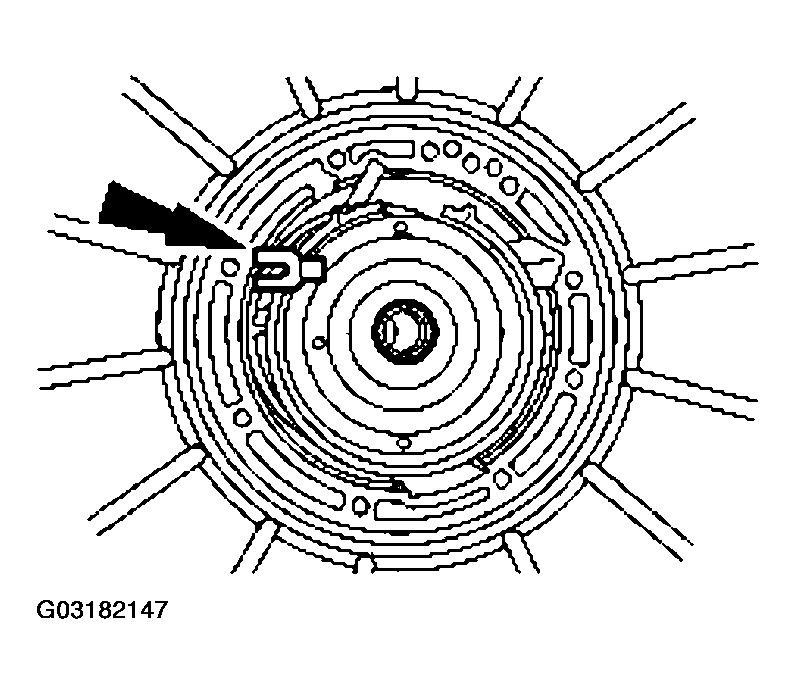

    Fig 1: Removing Apply Strut
    G03182147Courtesy of FORD MOTOR CO.
  1. Compress the overdrive band and remove the apply strut.
