Item 43: Intermediate Servo Retaining Ring Disassembly Note
WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Servo cover is under spring tension.

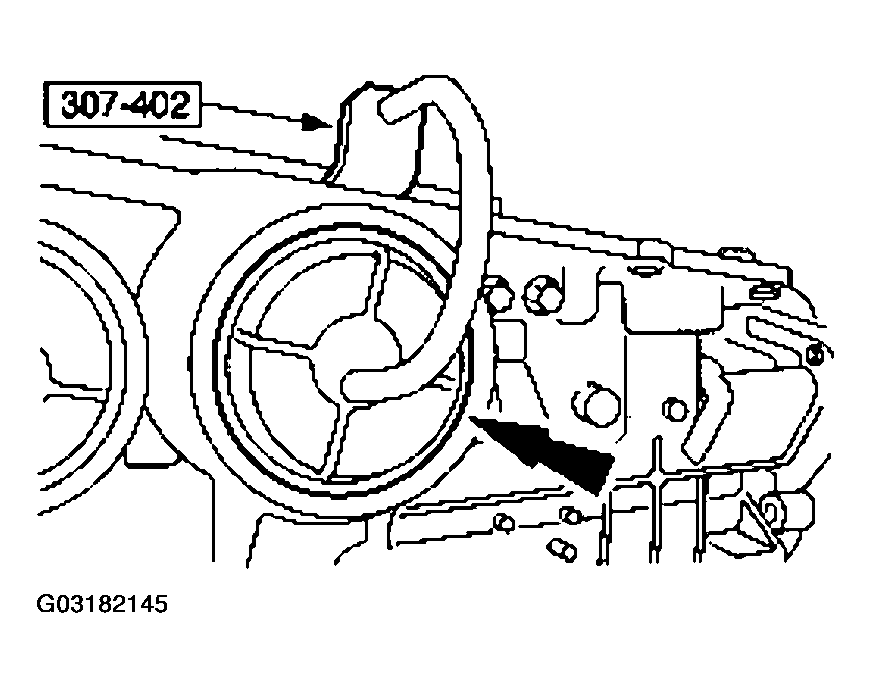

Fig 1: Removing Intermediate Servo Cover Retaining Ring
Courtesy of FORD MOTOR CO.
Using the special tool, remove the intermediate servo cover retaining ring.
