Item 41: Front Pump Disassembly Note

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the special tool.

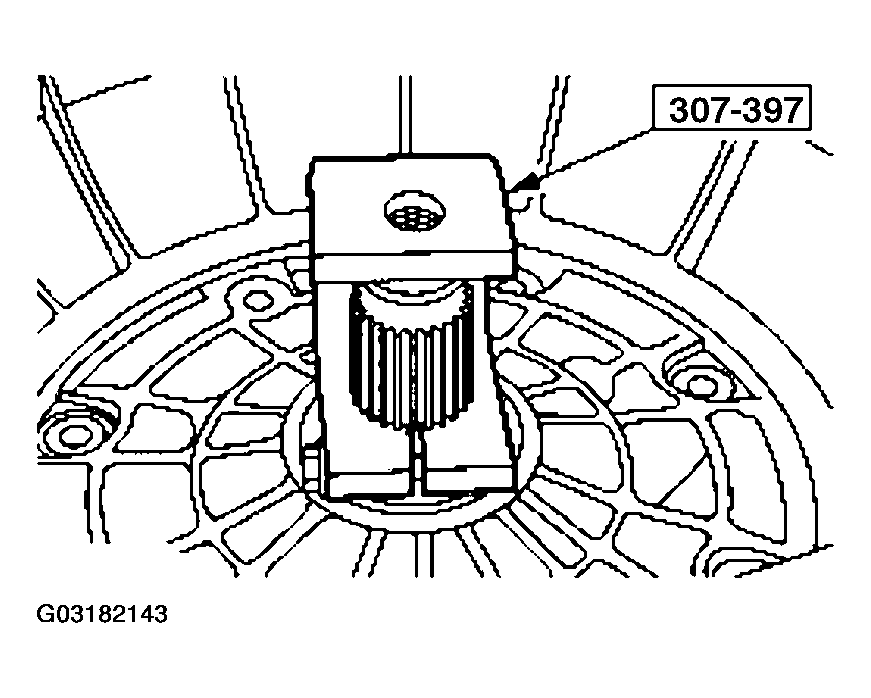

    Fig 1: Installing Special Tool
    G03182143Courtesy of FORD MOTOR CO.
  2. Using the special tools, remove the pump.
    Fig 2: Removing Pump
    G03182144Courtesy of FORD MOTOR CO.
