Item 40: Front Pump Screws Disassembly Note

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
    CAUTION: The screws are not reusable for assembly. Discard the screws. If the screws are reused, the housing may become separated from the transmission.

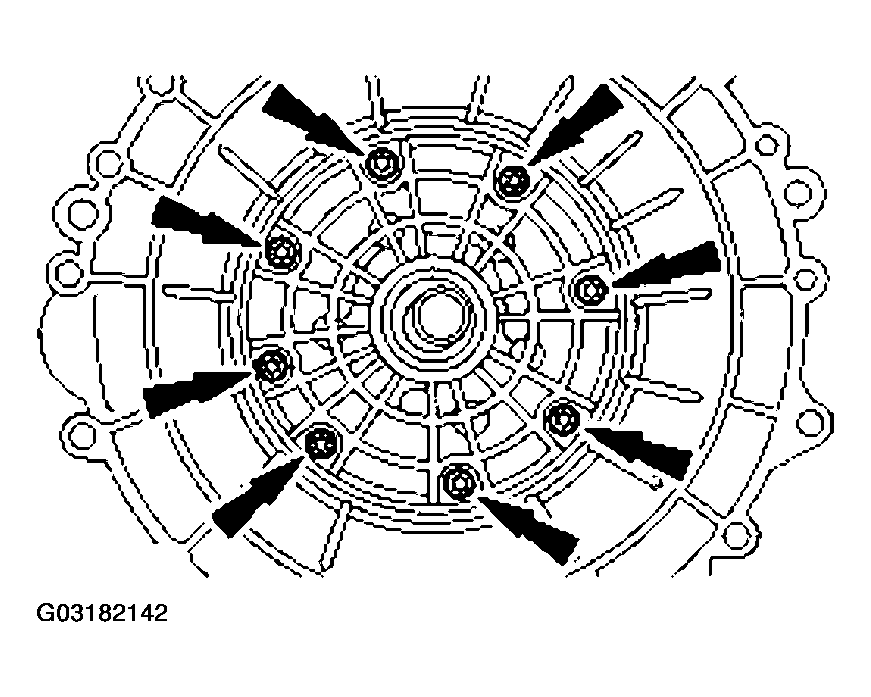

    Fig 1: Removing Screws
    G03182142Courtesy of FORD MOTOR CO.
  1. Remove and discard the screws.
