Item 36: Front Pump Fluid Seal Disassembly Note

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Using the special tools, remove the converter hub seal.

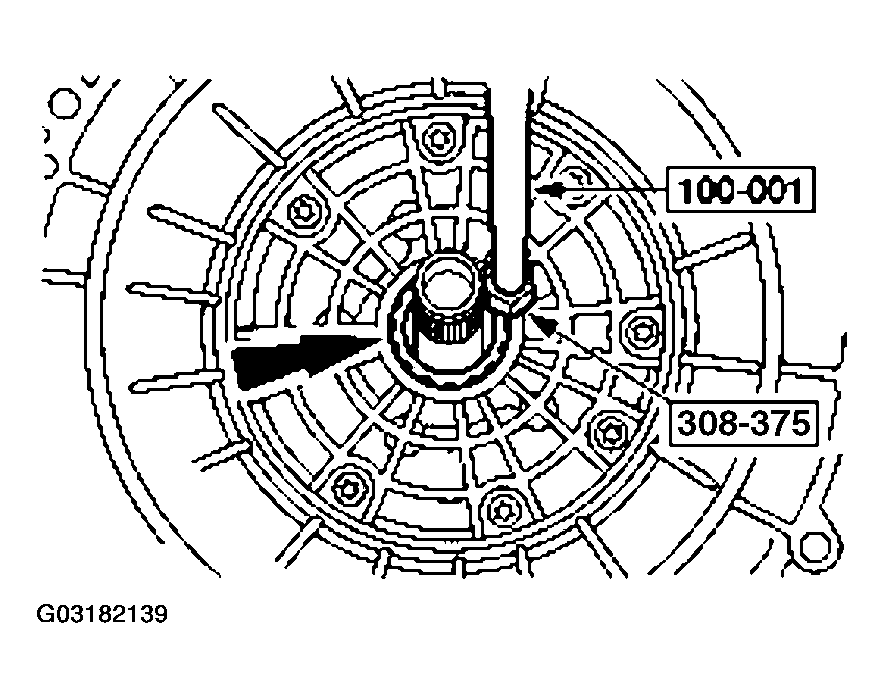

    Fig 1: Removing Converter Hub Seal
    G03182139Courtesy of FORD MOTOR CO.
