Item 28: Reverse Servo Piston and Cover Assembly Disassembly Note

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
    WARNING: The upper and lower servo covers are under spring tension. Use care when removing the piston and cover assembly. Failure to follow these instructions may result in personal injury.

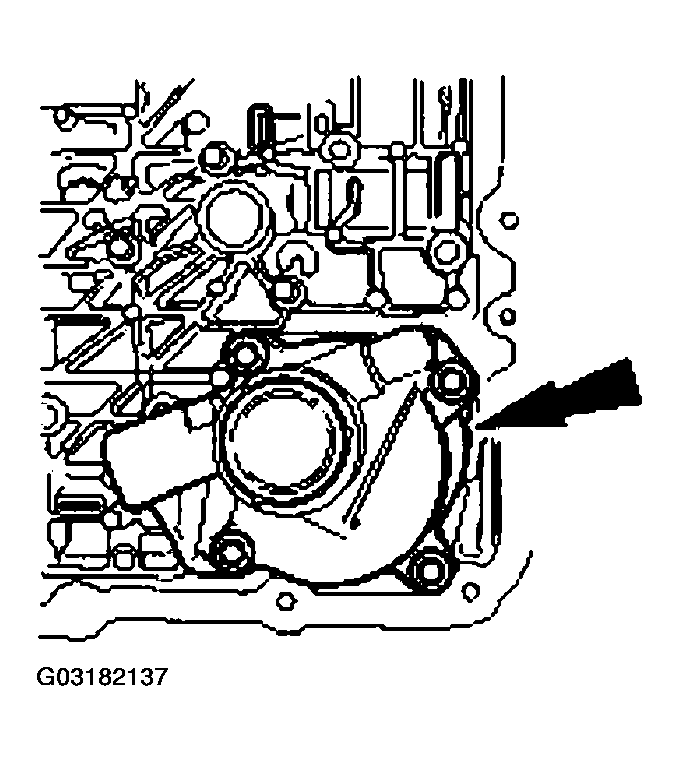

    Fig 1: Removing Reverse Servo Assembly
    G03182137Courtesy of FORD MOTOR CO.
  1. Remove the reverse servo assembly.
