Item 2: Transmission Case Disassembly Note

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
    WARNING: Make sure the lock pin on the bench-mounted holding fixture is secure. Failure to follow these instructions can result in personal injury.

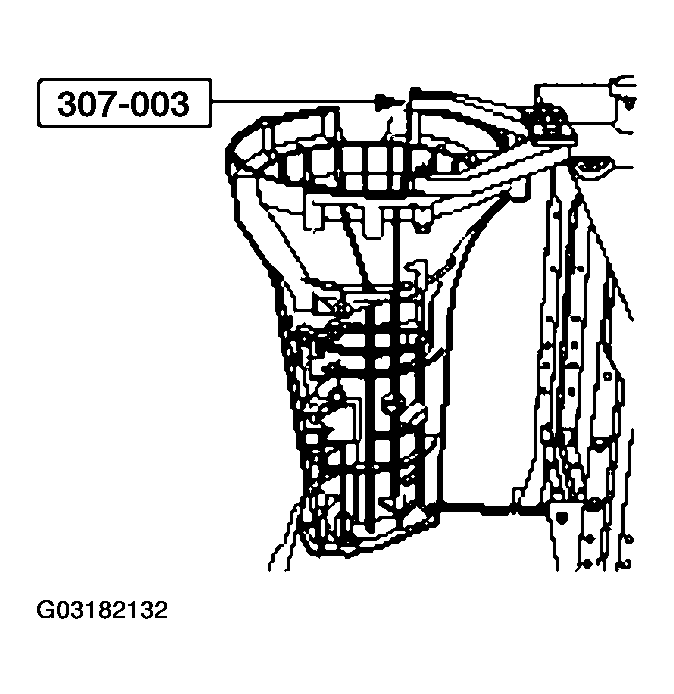

    Fig 1: Installing Transmission Into Bench
    G03182132Courtesy of FORD MOTOR CO.
  1. Using the special tool, install the transmission into the bench with the converter housing facing up.
