Item 15: Extension Housing (4x4) Disassembly Note

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
    CAUTION: The parking pawl, parking pawl return spring and parking pawl shaft could fall out during removal of the extension housing.

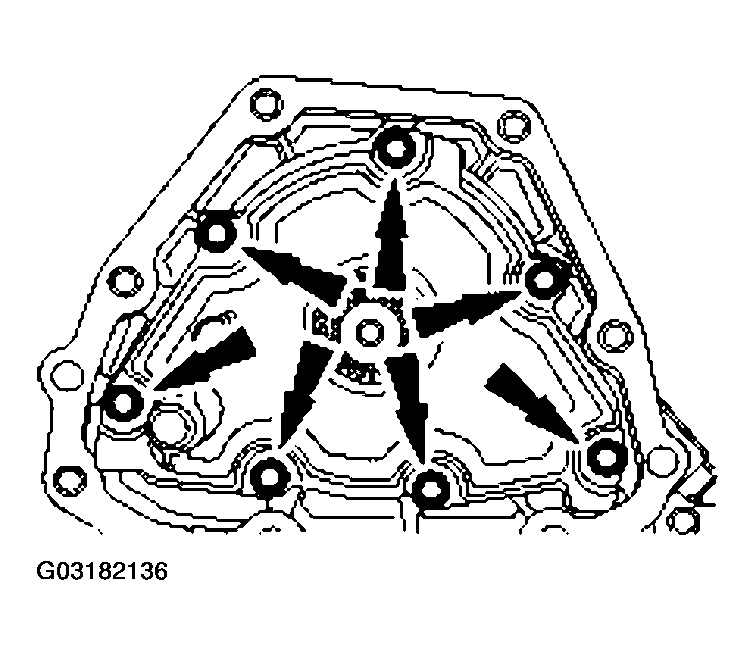

    Fig 1: Removing Extension Housing
    G03182136Courtesy of FORD MOTOR CO.
  1. Remove the extension housing.
