Item 1: Torque Converter Disassembly Note

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: The torque converter is heavy, especially when full of fluid.

NOTE: If not installing a new torque converter, leave the adapter plate screwed to the torque converter.

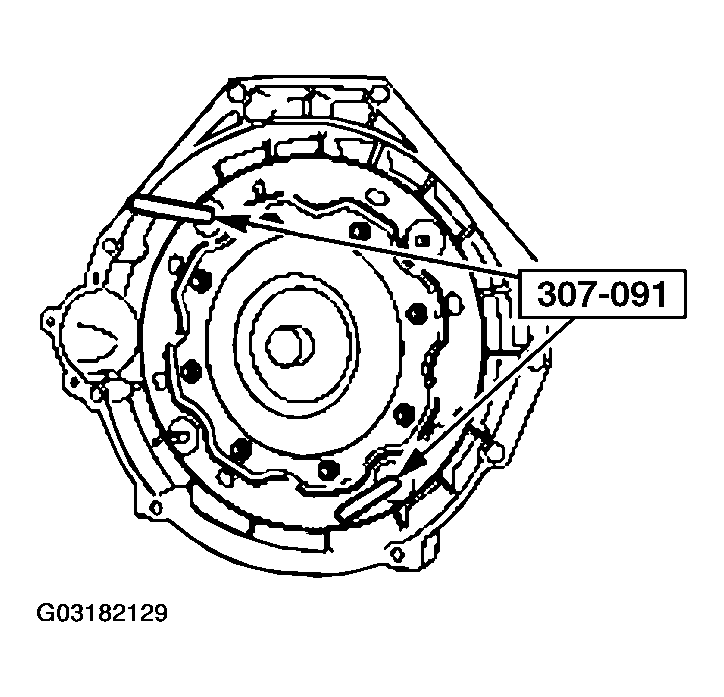

Fig 1: Removing Torque Converter

Courtesy of FORD MOTOR CO.

Using the special tools, remove the torque converter and adapter plate as an assembly.

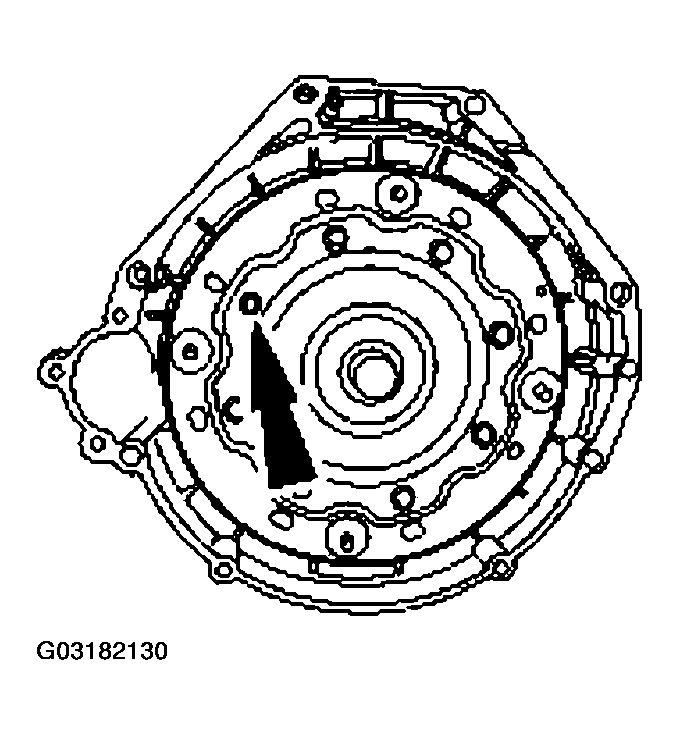

NOTE: Make an identifying mark on the nut, stud and adapter plate to allow for correct installation.

Fig 2: Removing Torque Converter Adapter Plate

Courtesy of FORD MOTOR CO.

If the vehicle is equipped, and installation of a new or remanufactured torque converter is necessary, remove the torque converter adapter plate.
If the adapter plate has been removed, use the special tool to remove the torque converter.

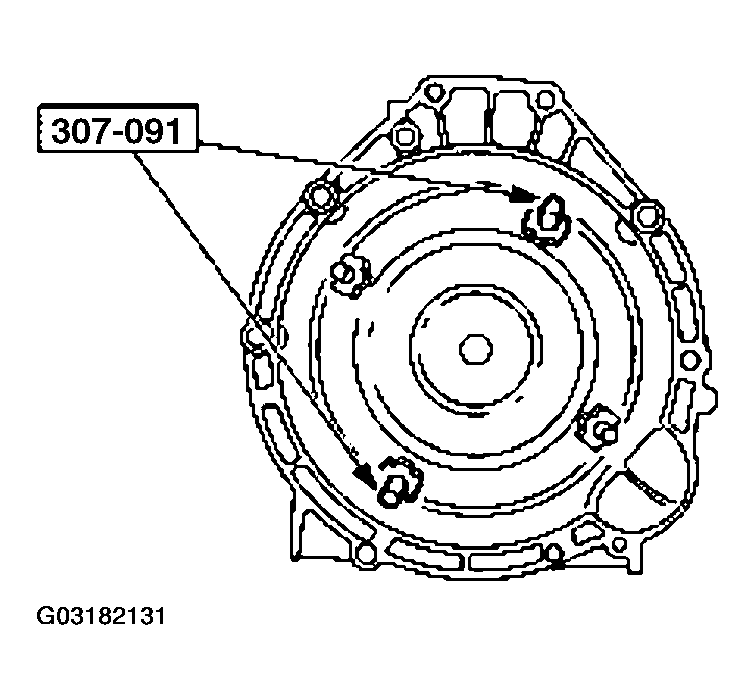

Fig 3: Removing Torque Converter
Courtesy of FORD MOTOR CO.
