Item 7: Overdrive Sun Gear Assembly Note

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the overdrive sun gear with the recessed gear teeth facing toward the adapter.

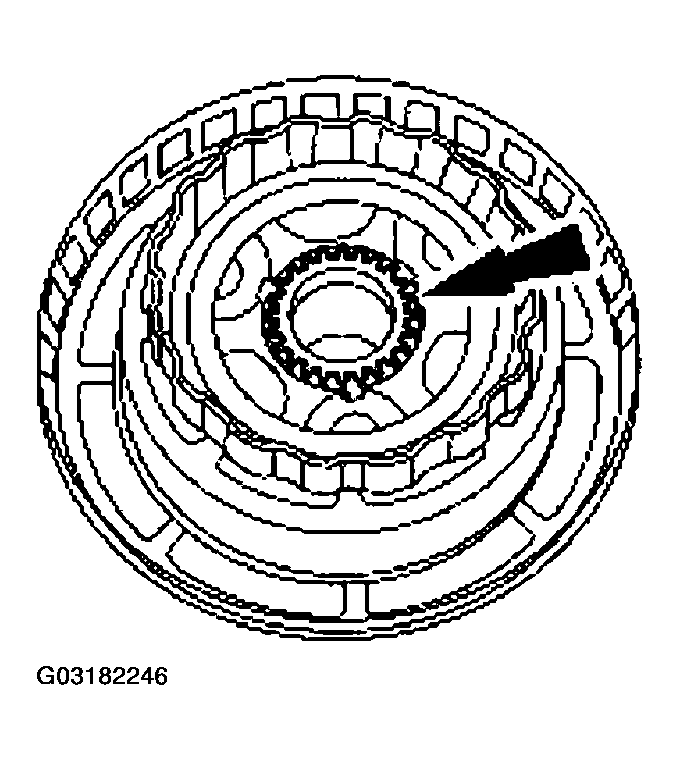

    Fig 1: Installing Overdrive Sun Gear
    G03182246Courtesy of FORD MOTOR CO.
