Item 9: Fluid Pump Screws Assembly Note

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Loosely install the fluid pump housing screws in their correct locations and remove the special tools. Install the two remaining screws.

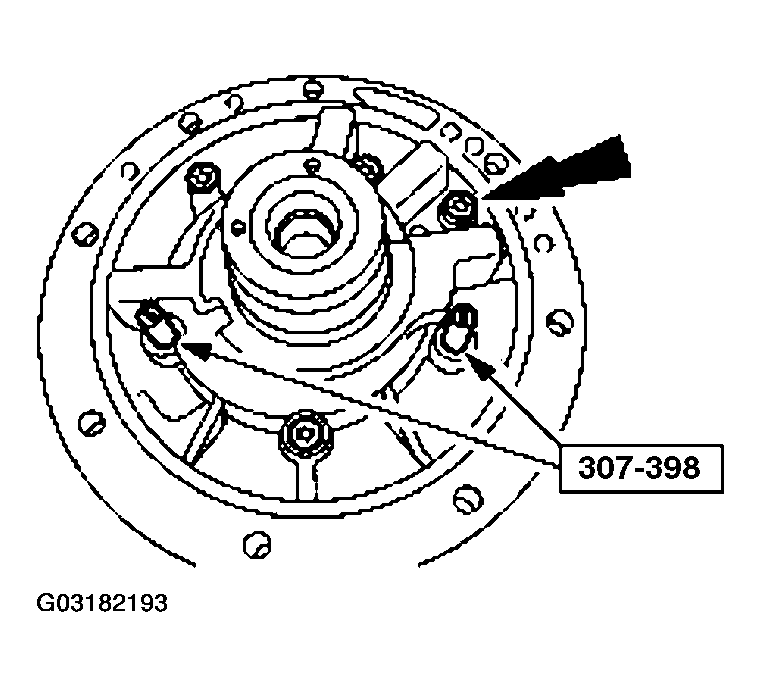

    Fig 1: Installing Remaining Screws
    G03182193Courtesy of FORD MOTOR CO.
  2. Tighten all the fluid pump screws in a star pattern.

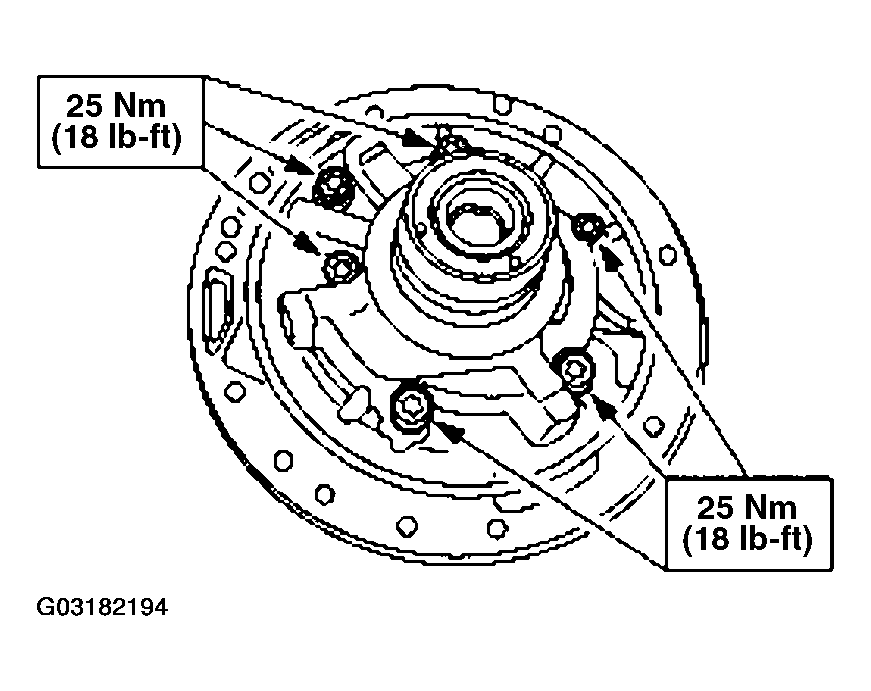

    Fig 2: Tightening All Fluid Pump Screws
    G03182194Courtesy of FORD MOTOR CO.
