Items 98 and 99: Speed Sensor and Screws Assembly Note

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

Using one of the speed sensor holes, fill the transmission with 8.5L (9 quarts) of automatic transmission fluid.

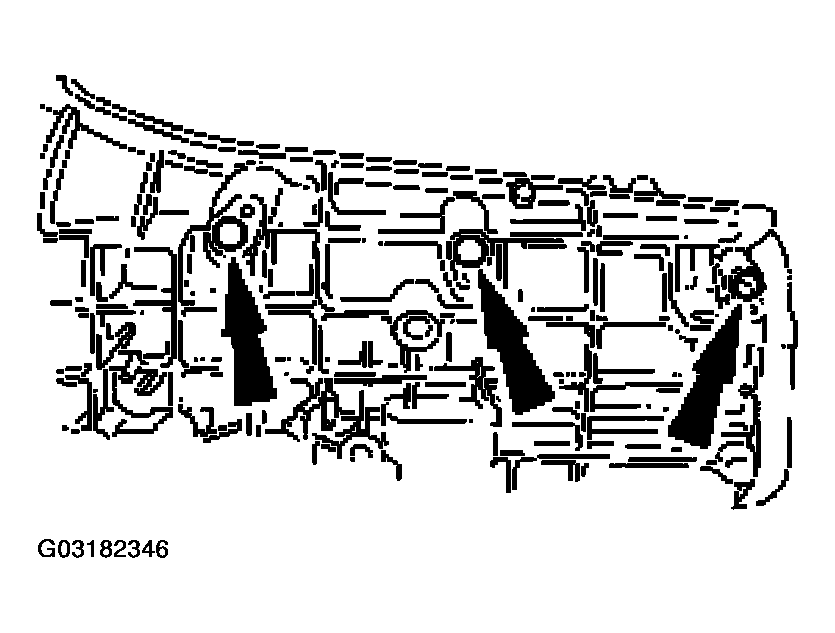

Fig 1: Identifying Speed Sensor Holes
Courtesy of FORD MOTOR CO.

NOTE: Inspect the speed sensor O-ring seals for damage. If damage to the seals is found, install new seals. Lubricate the O-ring seals with petroleum jelly to prevent damage to the O-ring seals.

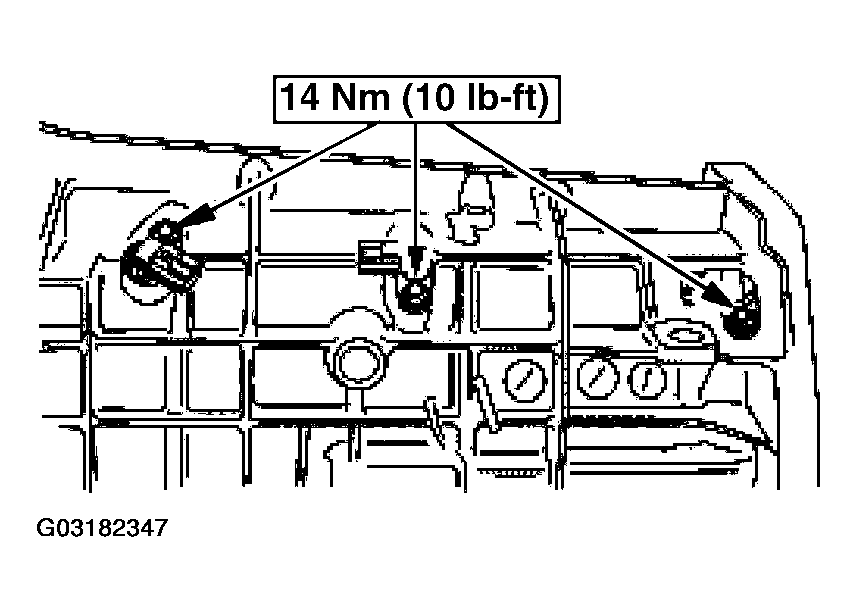

Fig 2: Installing Speed Sensors

Courtesy of FORD MOTOR CO.

Install the speed sensors.
