Items 96 and 97: Flexplate Adapter Plate and Nuts Assembly Note

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
    CAUTION: The special tool must be used to correctly align the adapter plate to the converter or transmission damage could occur.
    NOTE: Align the identifying mark made on the nut, stud and adapter plate during disassembly for correct installation.

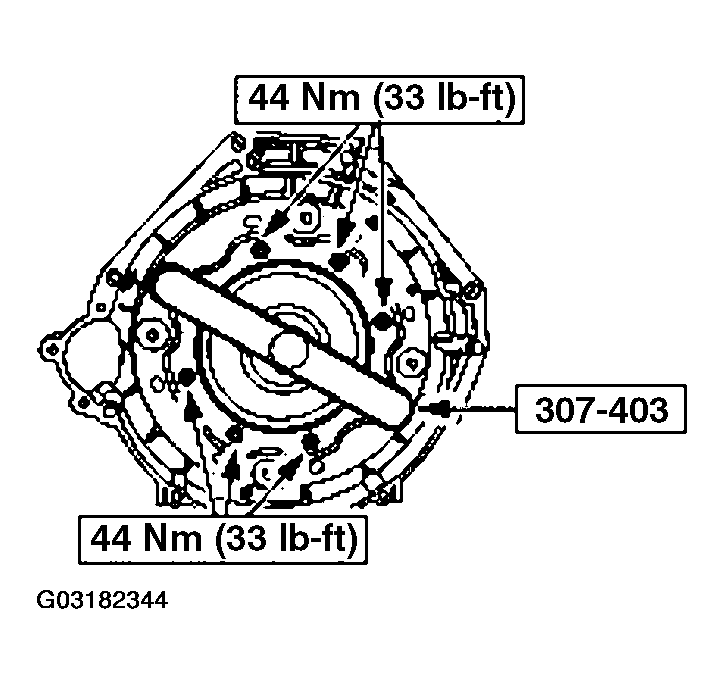

    Fig 1: Installing Torque Converter Flexplate Adapter Assembly
    G03182344Courtesy of FORD MOTOR CO.
  1. In order to correctly install the special service tool, it must be installed using one round and one oblong hole. Using two oblong holes will cause damage to the transmission.

    If the vehicle is equipped and the flexplate adapter was removed, use the special tool to install the torque converter flexplate adapter assembly and eight nuts.

  2. Install two torque converter flexplate adapter nuts.

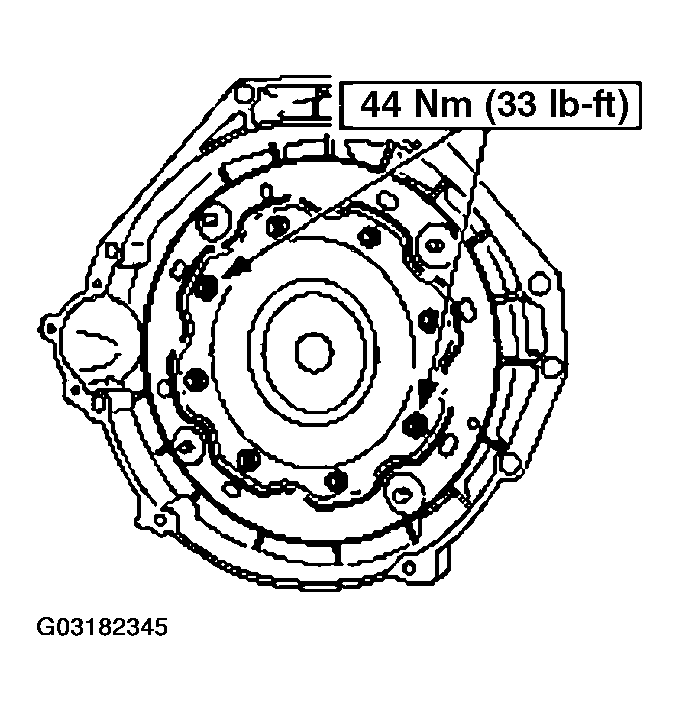

    Fig 2: Installing Torque Converter Flexplate Adapter Nuts
    G03182345Courtesy of FORD MOTOR CO.
