Items 88 and 89: Transmission Range (TR) Sensor and Screws Assembly Note
WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

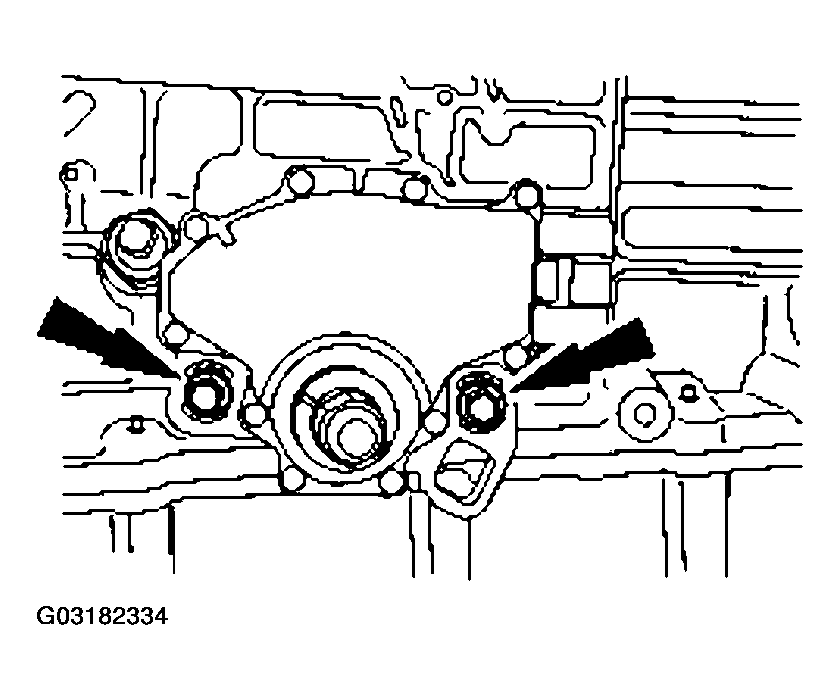

- Install the digital TR sensor and loosely install the screws.

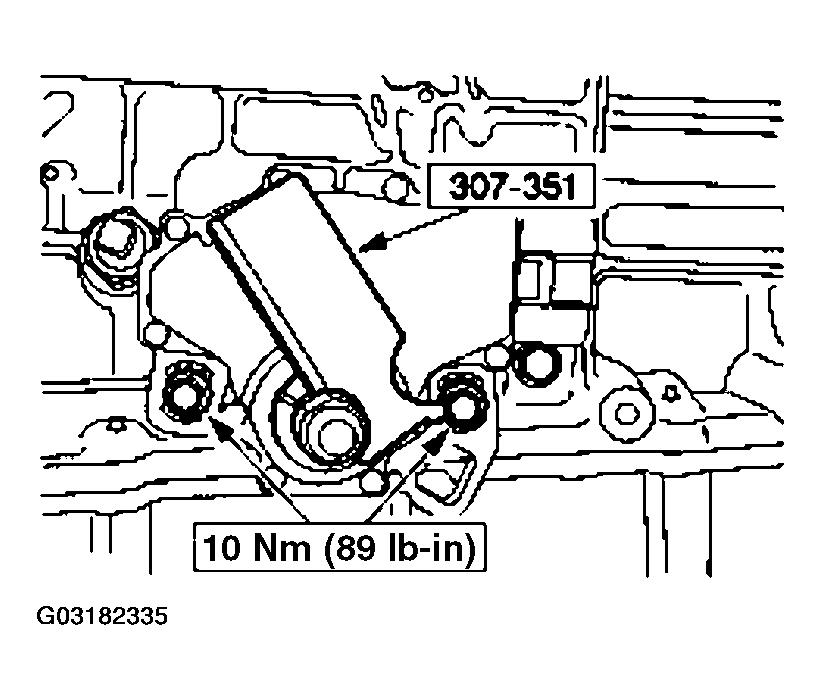

- Using the special tool, align the digital TR sensor and tighten the screws in an alternating sequence.
CAUTION:
The digital TR sensor must fit flush against the boss on the case to prevent damage to the sensor.
CAUTION:
Tightening one screw before tightening the other may cause the sensor to bind or become damaged.
NOTE:
The manual lever must be in the NEUTRAL position.
