Items 71, 72 and 73: Solenoid Body and Solenoid Body Screws Assembly Note

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Inspect the transmission case bore to make sure it is free of foreign material and not damaged. If damaged, a transmission leak may occur.

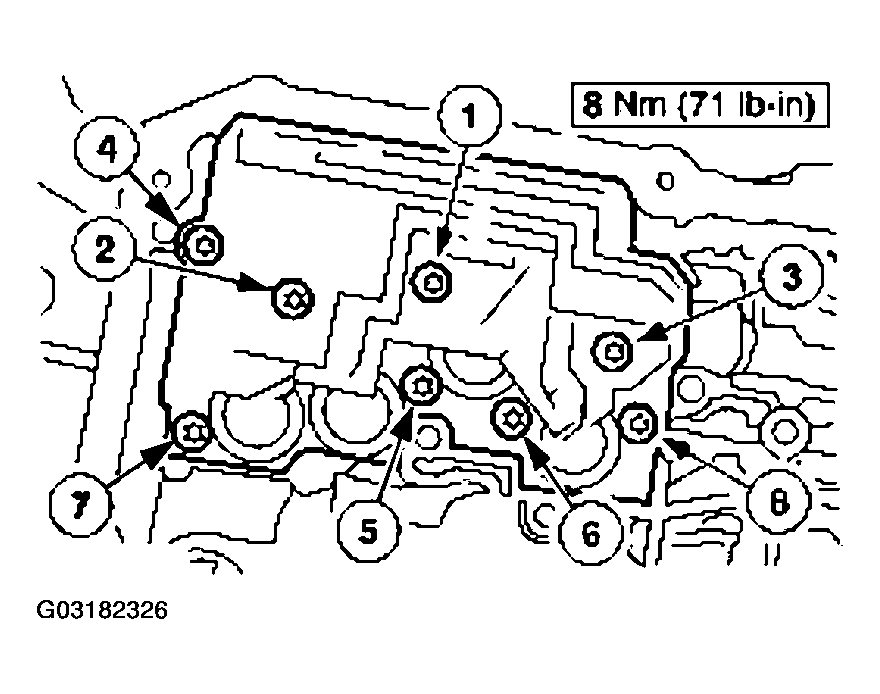

Fig 1: Installing Solenoid Body

Courtesy of FORD MOTOR CO.

Install the solenoid body. Tighten screws in the sequence shown.
