Items 64, 65, 66 and 67: Main Control and Screws Assembly Note

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the special tools into the transmission case.

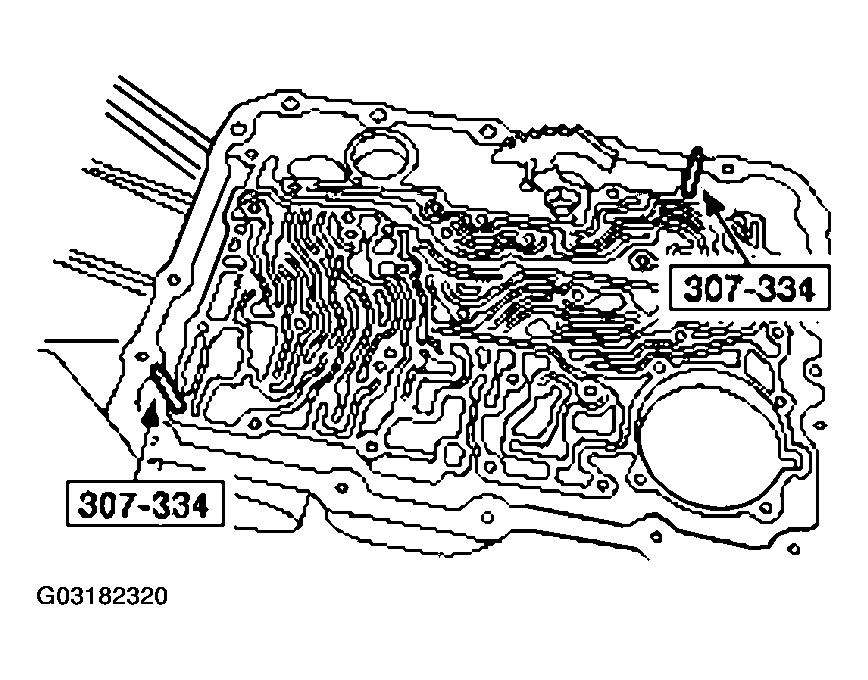

    Fig 1: Installing Special Tools Into Transmission Case
    G03182320Courtesy of FORD MOTOR CO.
  2. Using the special tools, install the main control valve body and loosely install the screws.
    1. Install the short screw.
    2. Install the screw with the larger head.
    3. Install the remaining screws.

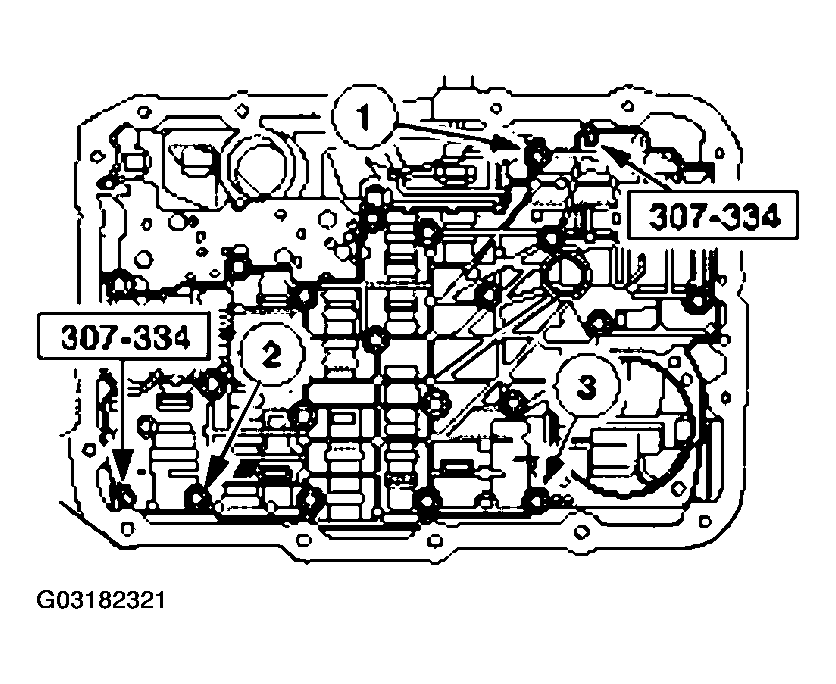

    Fig 2: Installing Main Control Valve Body
    G03182321Courtesy of FORD MOTOR CO.
  3. Remove the special tools and loosely install the screw.

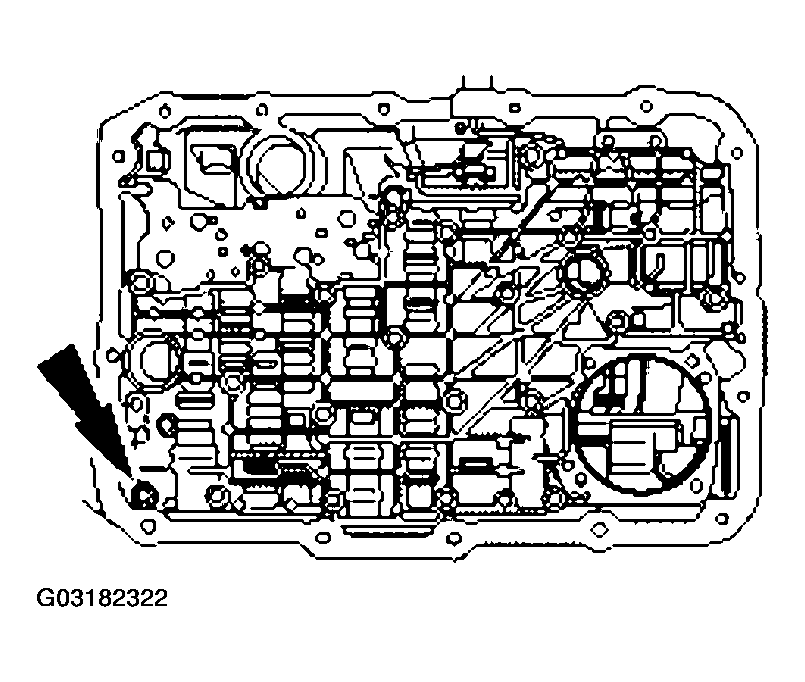

    Fig 3: Installing Screw
    G03182322Courtesy of FORD MOTOR CO.
  4. Tighten the screws in the sequence shown.

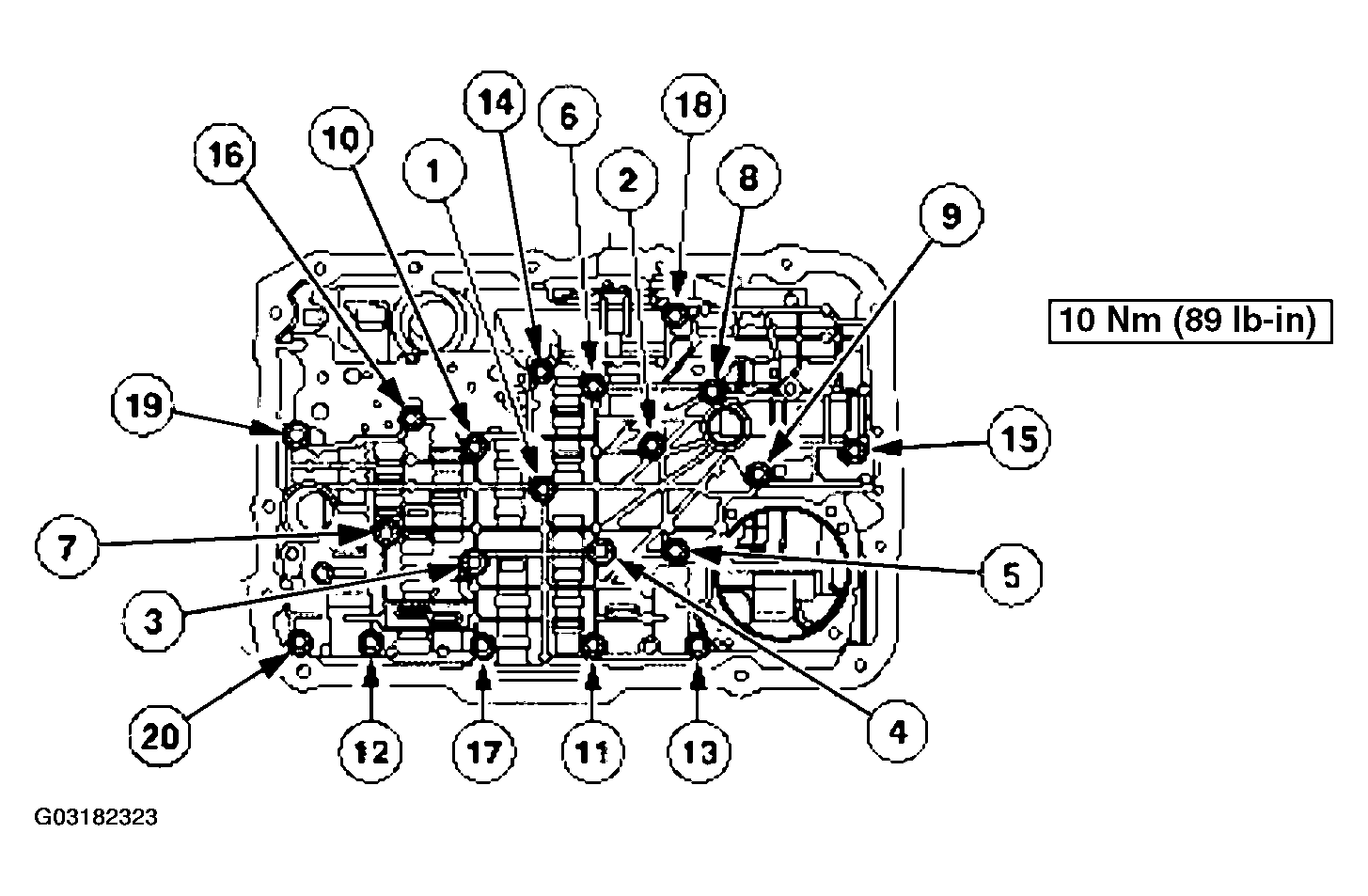

    Fig 4: Tightening Main Control Valve Body Screws In Sequence
    G03182323Courtesy of FORD MOTOR CO.
