Item 92: Fluid Pump Assembly Note

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Using the special tool, make sure that the fluid pump gear seal ring is fully seated.
    Fig 1: Inspecting Fluid Pump Gear Seal Ring
    G03182336Courtesy of FORD MOTOR CO.
  2. Remove the special tool.

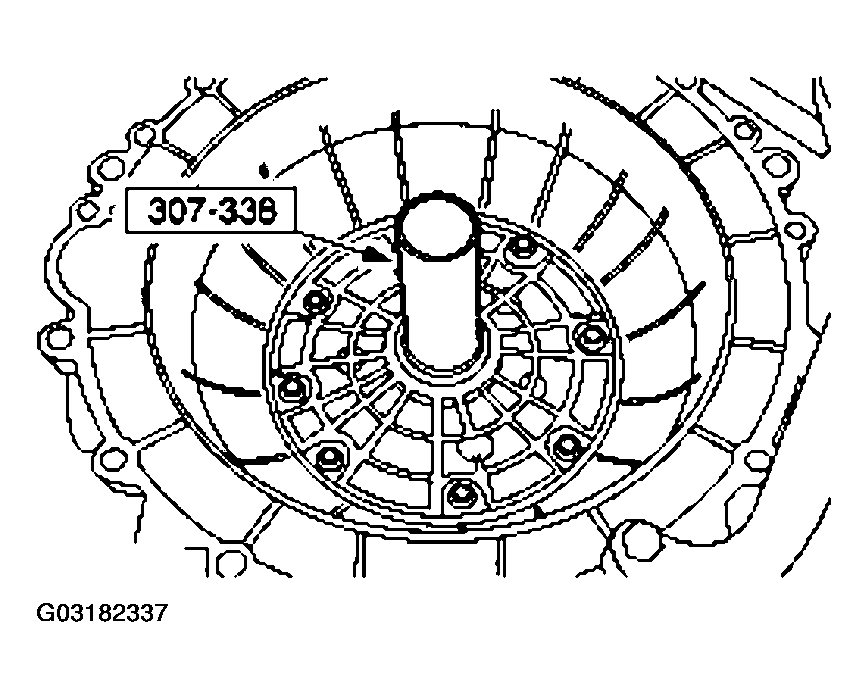

    Fig 2: Removing Special Tool
    G03182337Courtesy of FORD MOTOR CO.
