Item 9: Output Shaft Thrust Washer No. 11 Assembly Note

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: The tabs on the output shaft thrust washer (No. 11) point into the case. Make sure the thrust washer is correctly seated.

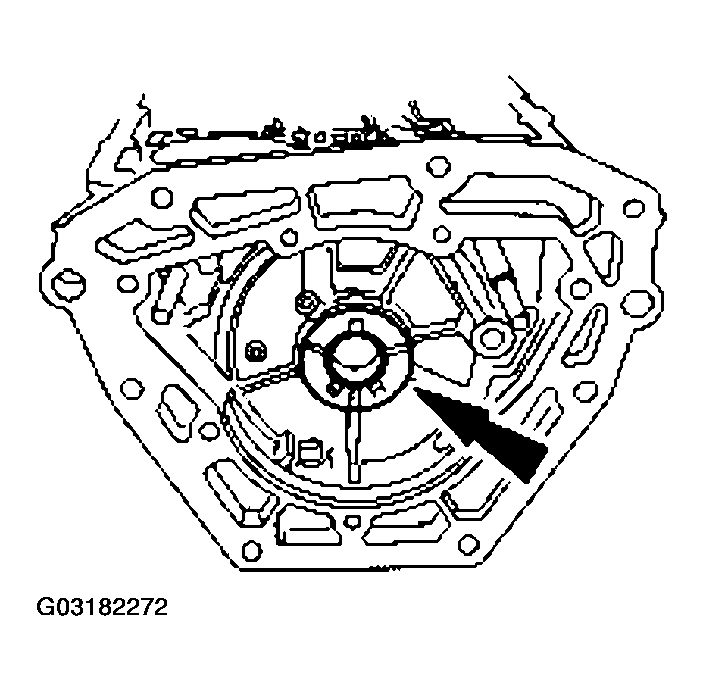

Fig 1: Installing Output Shaft Thrust Washer

Courtesy of FORD MOTOR CO.

Install the output shaft thrust washer (No. 11).
- Coat the output shaft thrust washer with petroleum jelly.
