Item 75: Reverse Servo Screws Assembly Note

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the reverse servo. Tighten the screws in the sequence shown in two stages.
    • Stage 1: Tighten screws to 5 Nm (44 lb-in).
    • Stage 2: Tighten screws to 11 Nm (8 lb-ft).

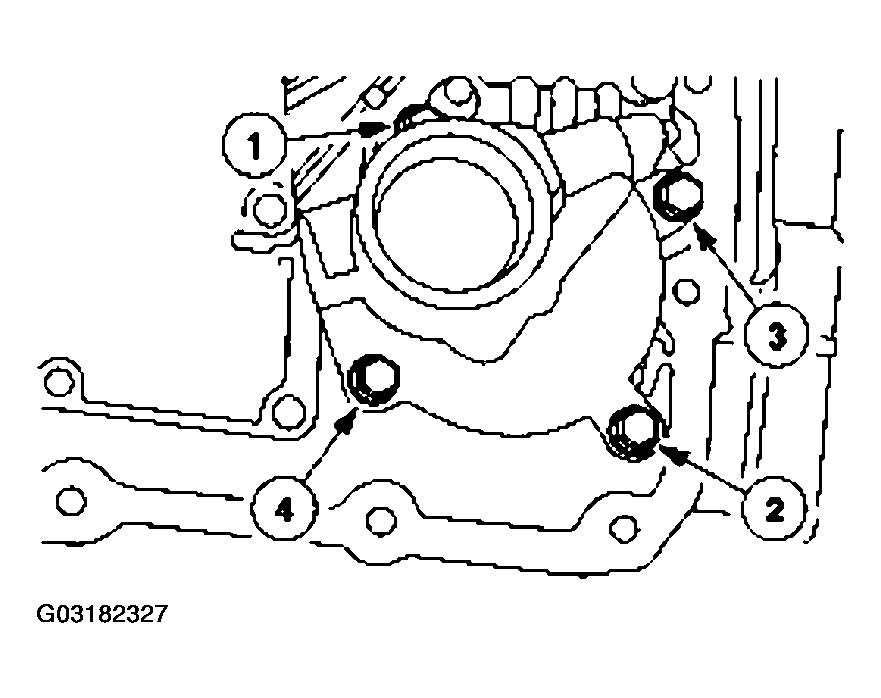

    Fig 1: Installing Reverse Servo
    G03182327Courtesy of FORD MOTOR CO.
