Item 60: Fluid Pump Screw Assembly Note

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install screws. Tighten the screws in a star pattern.
    Fig 1: Installing Screws
    G03182311Courtesy of FORD MOTOR CO.
  2. Remove the special tools and install the two remaining screws.

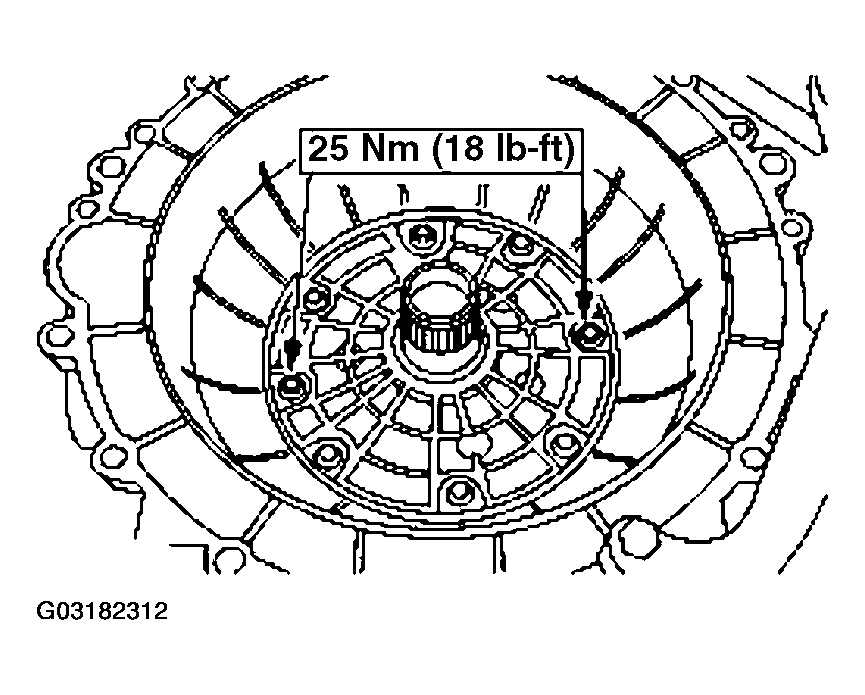

    Fig 2: Installing Remaining Screws
    G03182312Courtesy of FORD MOTOR CO.
