Item 58: Fluid Pump Gasket Assembly Note

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the special tools into the transmission case.

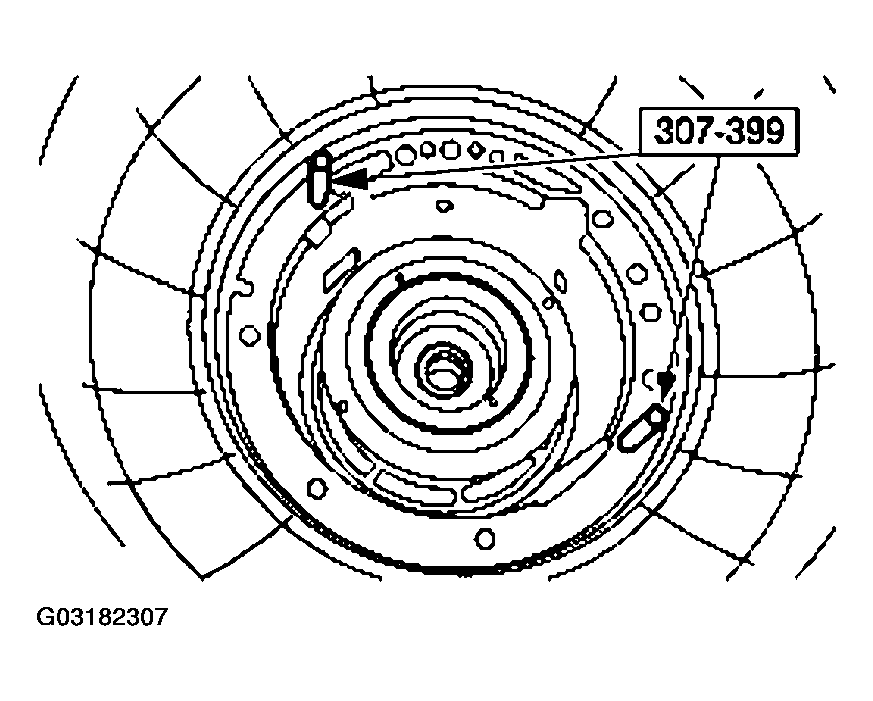

    Fig 1: Installing Special Tools Into Transmission Case
    G03182307Courtesy of FORD MOTOR CO.
  2. Install a new pump gasket.

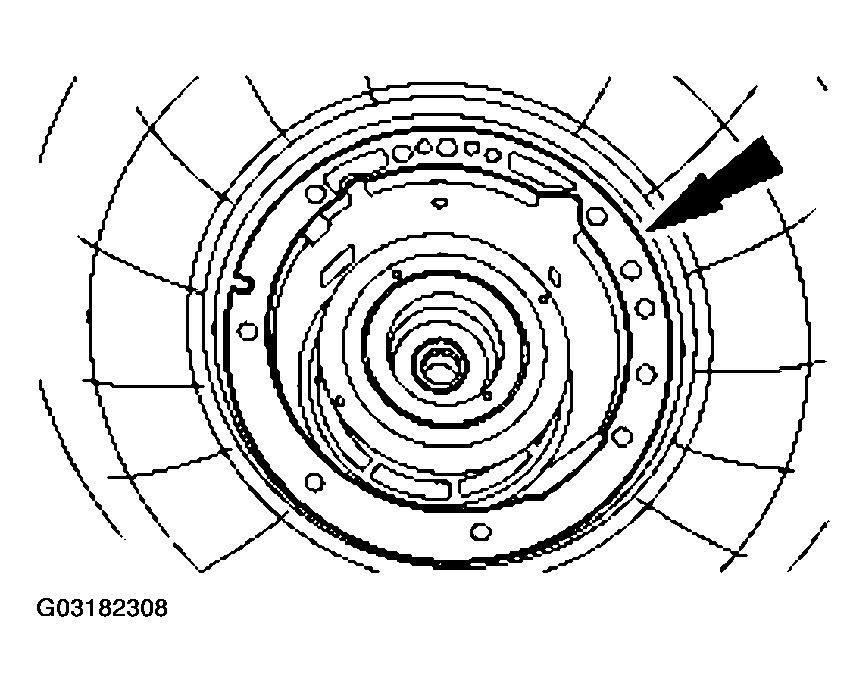

    Fig 2: Installing Pump Gasket
    G03182308Courtesy of FORD MOTOR CO.
