Item 56: Overdrive Brake Band Apply Strut Assembly Note

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the overdrive apply strut.

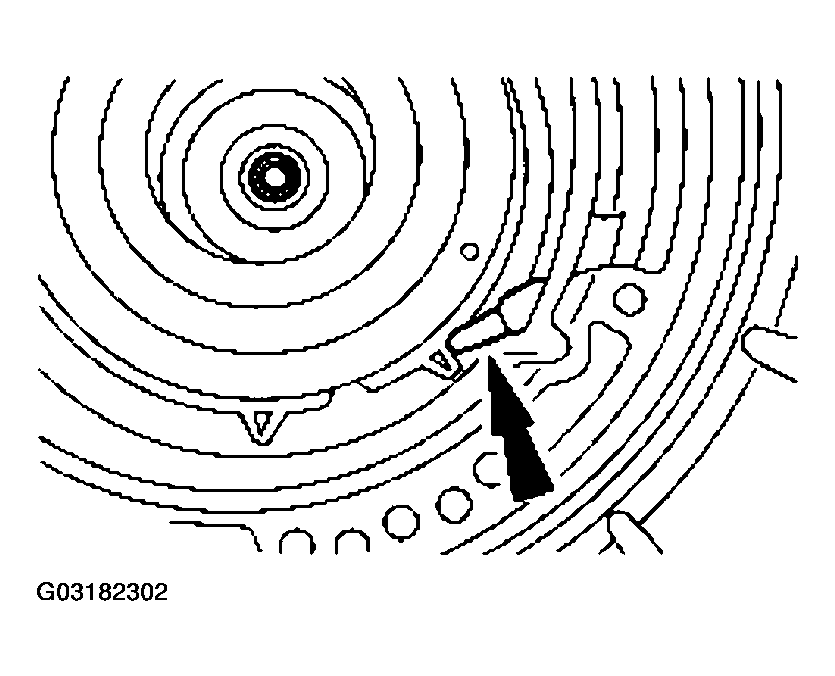

    Fig 1: Installing Overdrive Apply Strut
    G03182302Courtesy of FORD MOTOR CO.
    2. CAUTION: If the strut is installed incorrectly, transmission damage will occur.
    Fig 2: Checking Overdrive Band Apply Strut
    G03182303Courtesy of FORD MOTOR CO.
  2. Check to make sure that the overdrive band apply strut is installed in the correct orientation to the case and piston rod.
