Item 54: Overdrive Brake Band Anchor Strut Assembly Note

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the overdrive anchor strut.

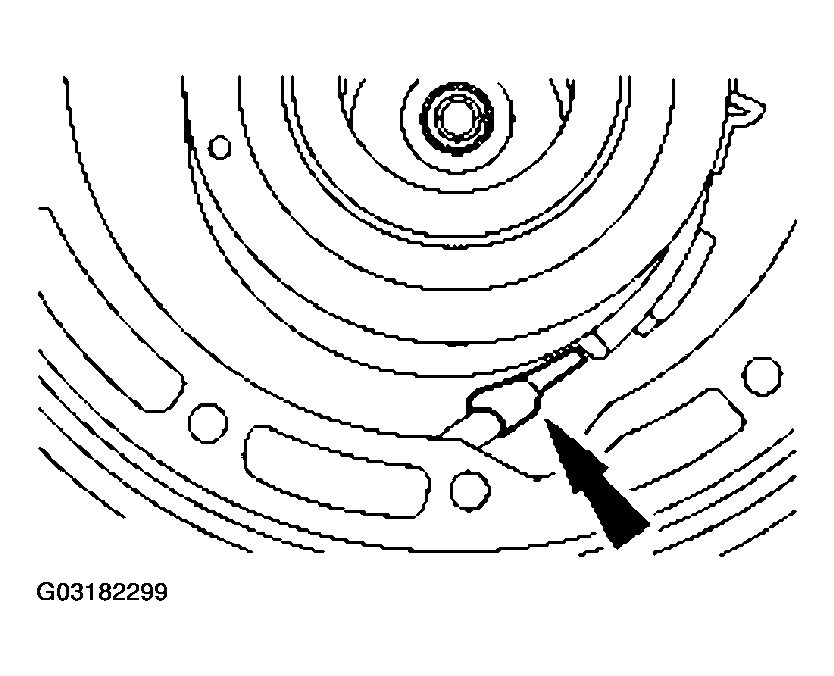

    Fig 1: Installing Overdrive Anchor Strut
    G03182299Courtesy of FORD MOTOR CO.
    2. CAUTION: If the strut is installed incorrectly, transmission damage will occur.
    Fig 2: Checking Overdrive Band Anchor Strut
    G03182300Courtesy of FORD MOTOR CO.
  2. Check to make sure that the overdrive band anchor strut is installed in the correct orientation to the case and adjustment screw.
