Item 51: Overdrive Planetary Gear Carrier Assembly Note

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
    CAUTION: Do not bend the trigger wheel. Make sure that the No. 2 thrust bearing is in this assembly.

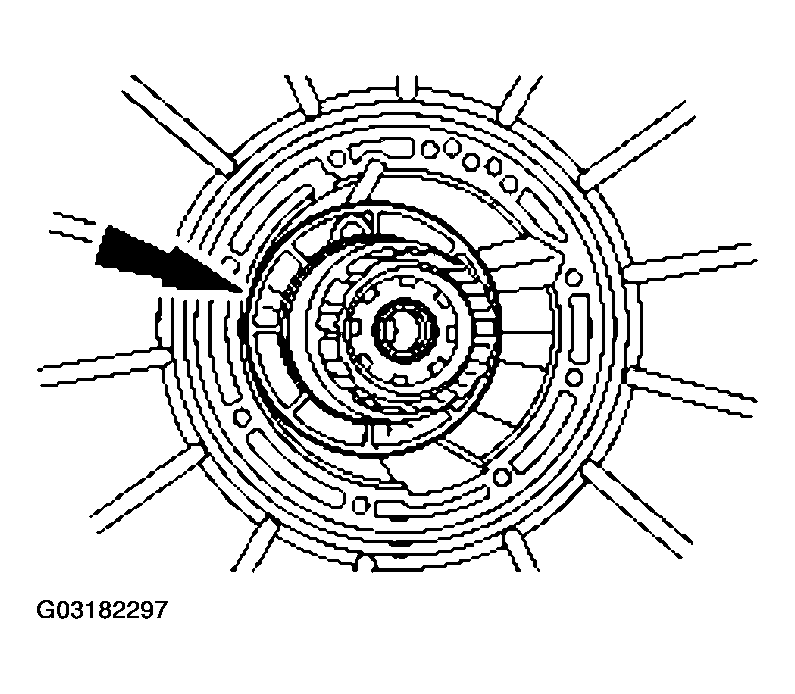

    Fig 1: Installing Planetary Gear Overdrive Carrier
    G03182297Courtesy of FORD MOTOR CO.
  1. Install the planetary gear overdrive carrier.
