Item 39: Intermediate Brake Band Anchor Strut Assembly Note

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the intermediate band anchor strut.

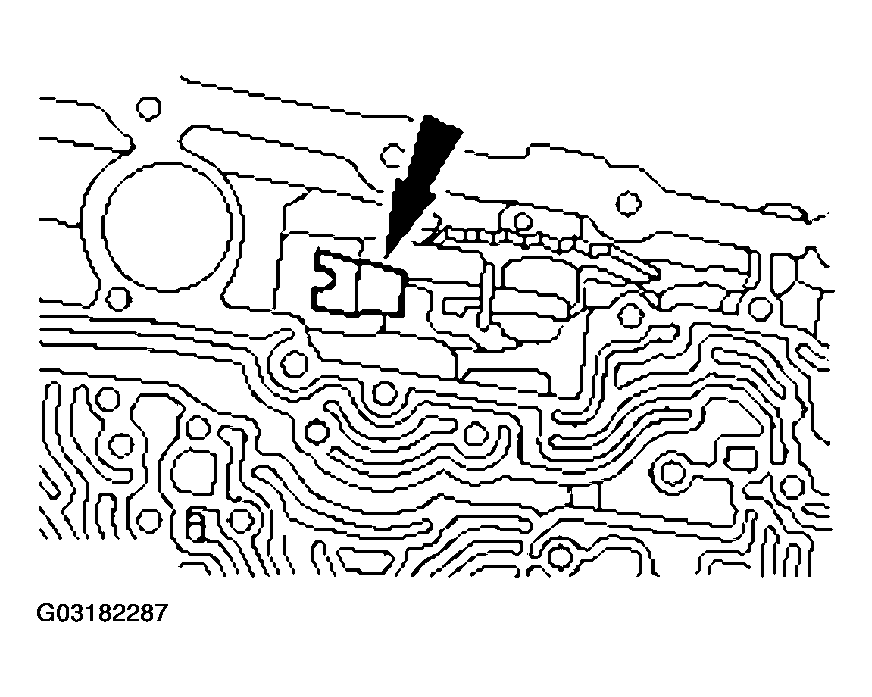

    Fig 1: Installing Intermediate Band Anchor Strut
    G03182287Courtesy of FORD MOTOR CO.
    2. CAUTION: If the strut is installed incorrectly, transmission damage will occur.
    Fig 2: Checking Intermediate Band Anchor Strut
    G03182288Courtesy of FORD MOTOR CO.
  2. Check to make sure that the intermediate band anchor strut is installed in the correct orientation to the case and adjustment screw.
