Item 2: Manual Control Lever Seal Assembly Note

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Using the special tool, install the manual control lever shaft seal and lubricate it with petroleum jelly.

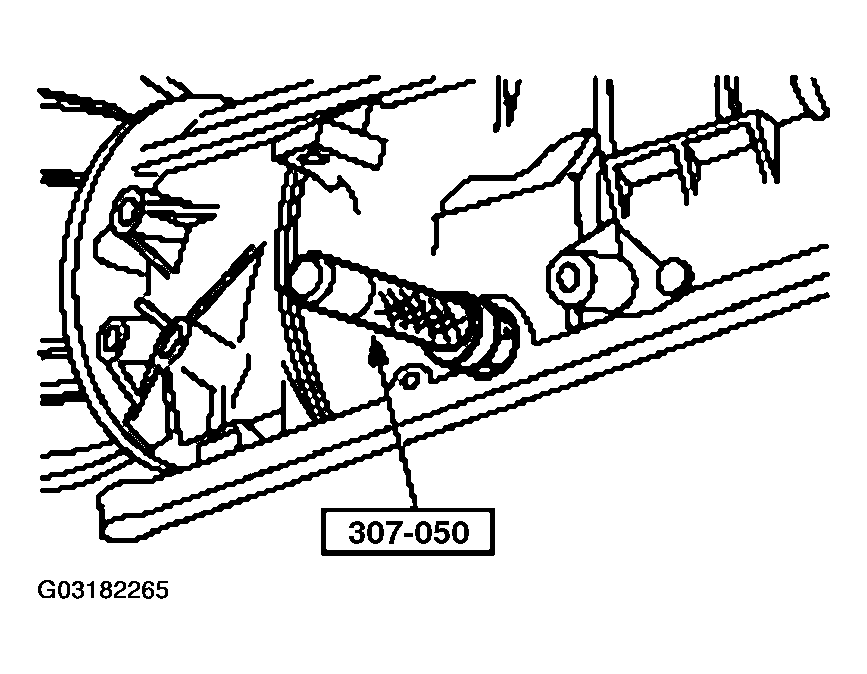

    Fig 1: Installing Manual Control Lever Shaft Seal
    G03182265Courtesy of FORD MOTOR CO.
