Ignition Coil-On-Plug And Spark Plug: Material

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL SPECIFICATION

Item Specification
Motorcraft Silicone Brake Caliper Grease and Dielectric Compound XG-3 or equivalent ESE-M1C171-A
NOTE: LH shown, RH similar.
  1. Disconnect the battery ground cable. For additional information, Refer to BATTERY DISCONNECT
  2. Remove the parts in the order indicated in the following illustration and table.

    To remove individual parts, only carry out the listed steps:

    REMOVAL STEPS

    Part Steps
    Ignition coil-on-plug 1-3
    Spark plug 1-4

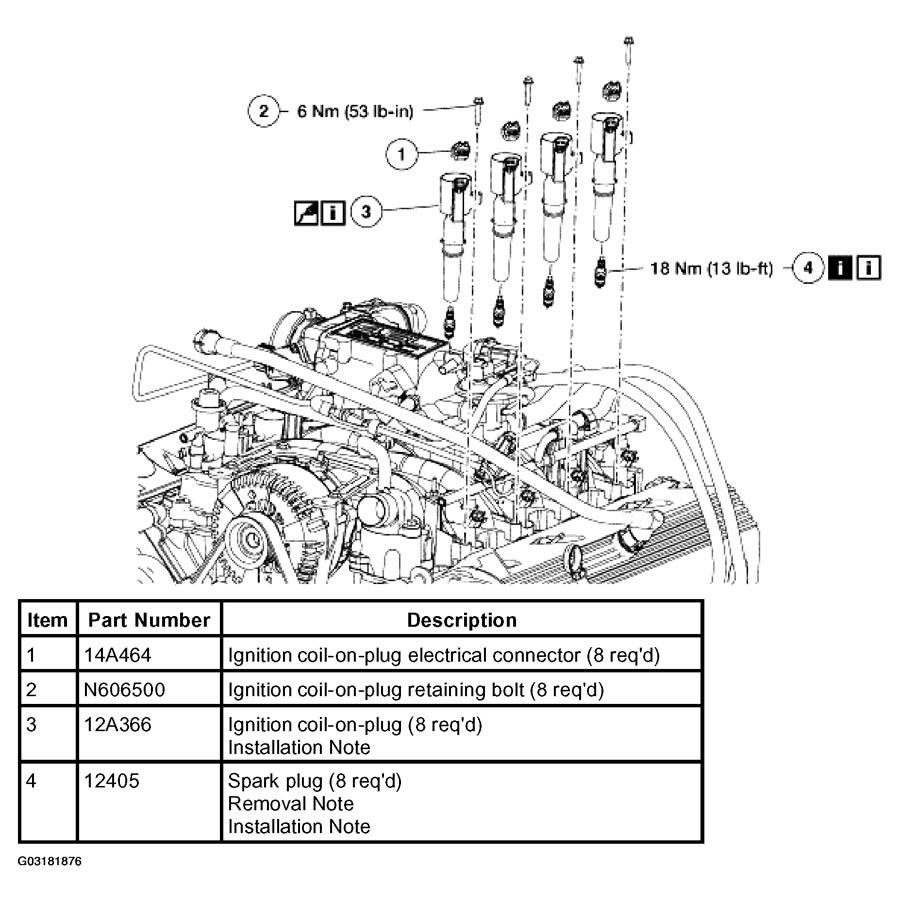

    Fig 1: Identifying Ignition Coil-On-Plug And Spark Plug Components
    G03181876Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
