Cylinder Head Temperature (CHT) Sensor

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the generator. For additional information, Refer to BATTERY & CHARGING SYSTEM
  2. Remove the parts in the order indicated in the following illustration and table.

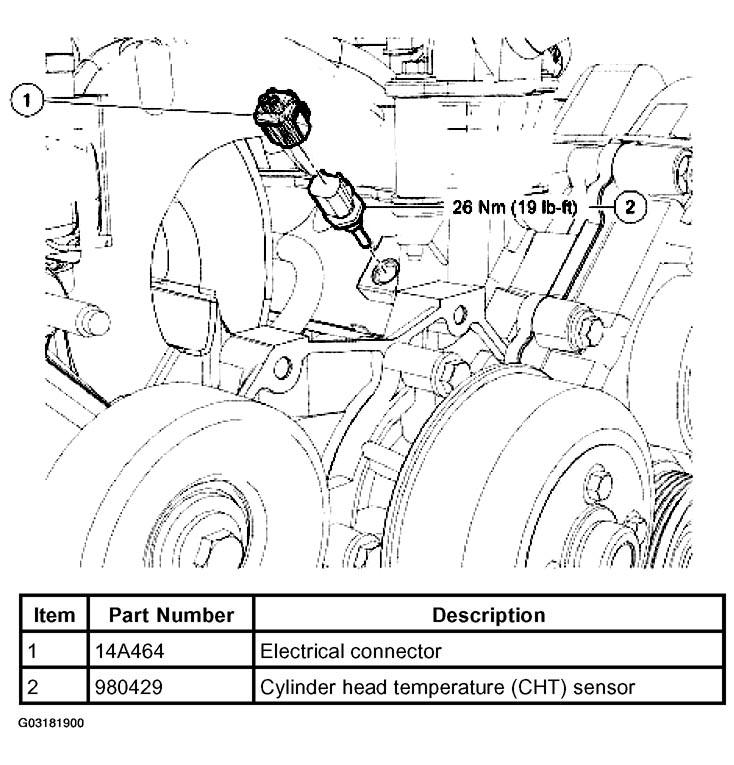

    Fig 1: Identifying Cylinder Head Temperature (CHT) Sensor Components
    G03181900Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
