Removal and Installation

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the battey ground cable. For additional information, refer to BATTERY DISCONNECT

Remove the parts in the order indicated in the following illustration and table.

To remove individual parts, only carry out the listed steps:

REMOVAL STEPS

Part	Steps
Air cleaner outlet pipe	1-4
Air cleaner element	5-8
Air cleaner	5-9

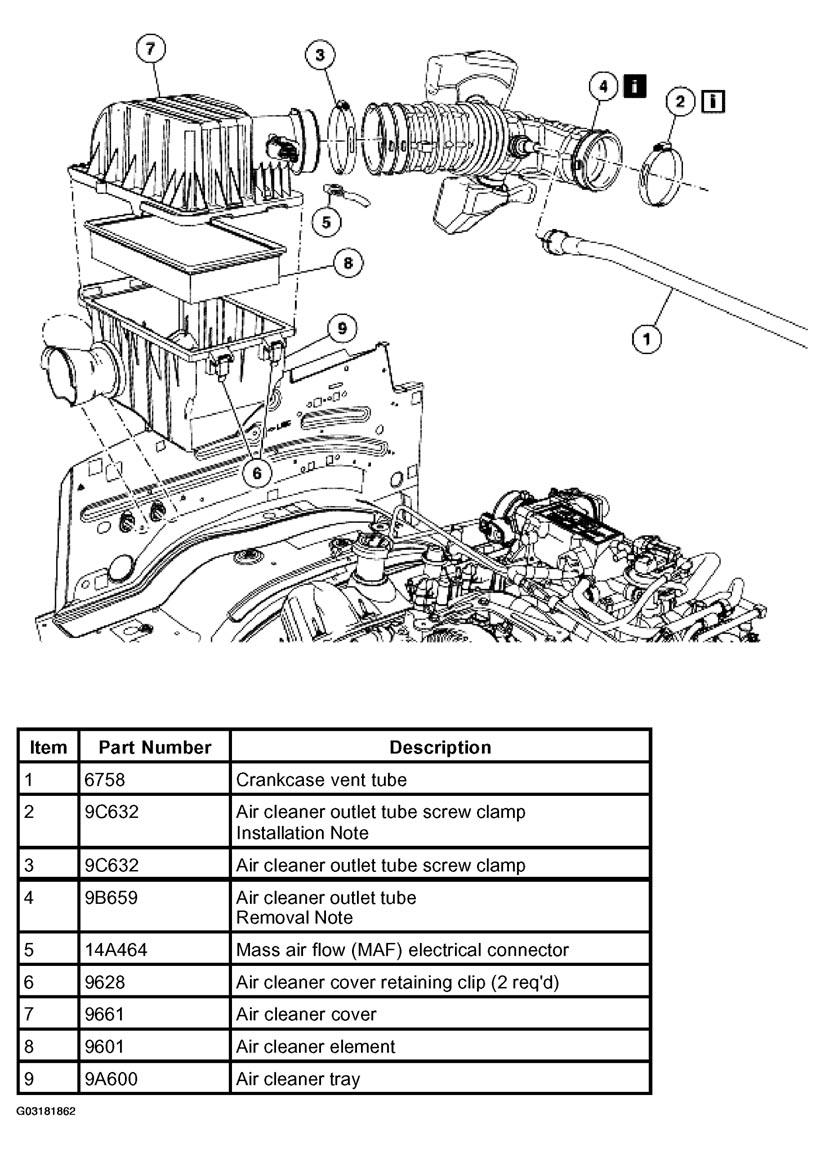

Fig 1: Identifying Air Cleaner Assembly Components

Courtesy of FORD MOTOR CO.

To install, reverse the removal procedure.
