Item 1: Fuel Tube Spring Lock Coupling Removal Note

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the safety clip.
  2. Install and push the special tool into the open side of the cage.
  3. Separate the fitting.
    • Inspect for damage.
      • Clean the fittings.

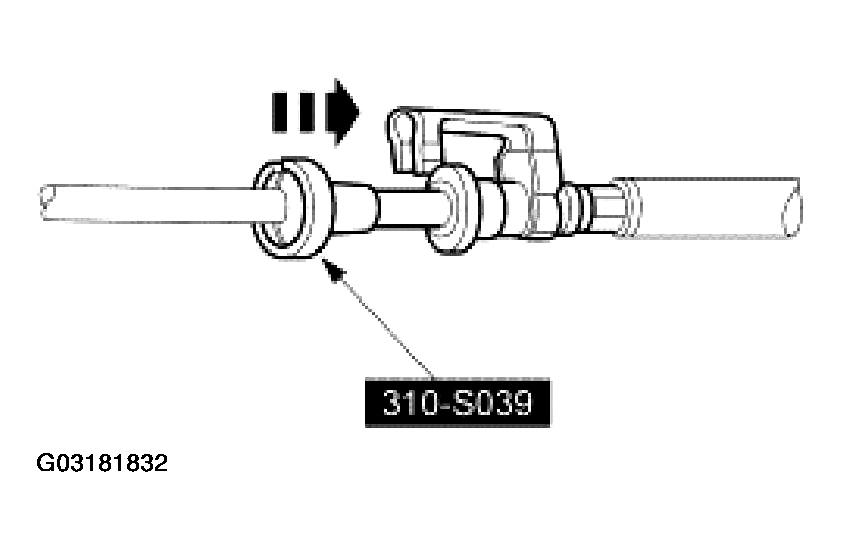

    Fig 1: Identifying Fuel Tube Spring Lock
    G03181832Courtesy of FORD MOTOR CO.
  4. Separate the fitting and remove the special tool.

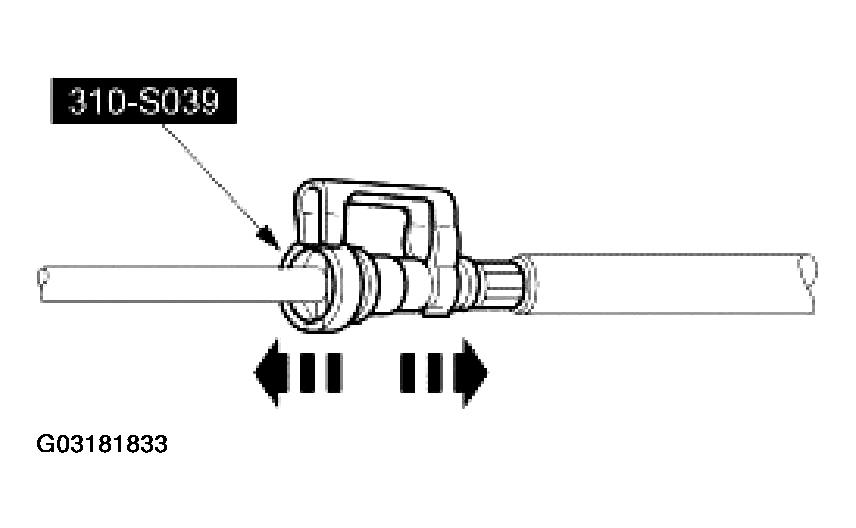

Fig 2: Removing Special Tool
G03181833Courtesy of FORD MOTOR CO.
