Removal and Installation

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
  2. Disconnect the battery ground cable. For additional information, refer to BATTERY DISCONNECT .
  3. Remove the components in the order indicated in the following illustration and table.

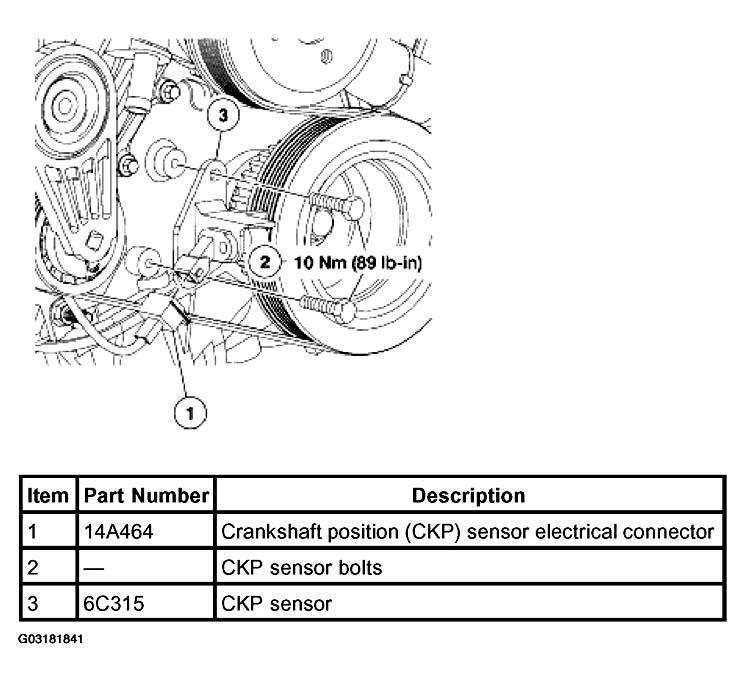

    Fig 1: Identifying Crankshaft Position (CKP) Sensor Removing Sequence
    G03181841Courtesy of FORD MOTOR CO.
    4. NOTE: Be sure the sensor wiring is routed away from the battery cable.
  4. To install, reverse the removal procedure.
