Removal and Installation

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery ground cable. For additional information, refer to BATTERY DISCONNECT .
  2. Remove the parts in the order indicated in the following illustration and table.

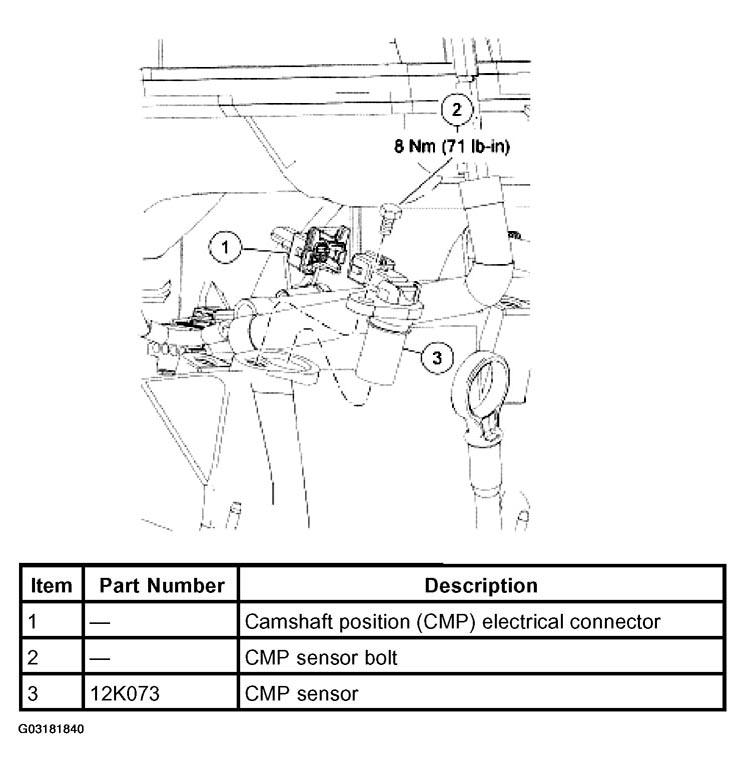

    Fig 1: Identifying Part Removing Sequence
    G03181840Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
