Removal and Installation
WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

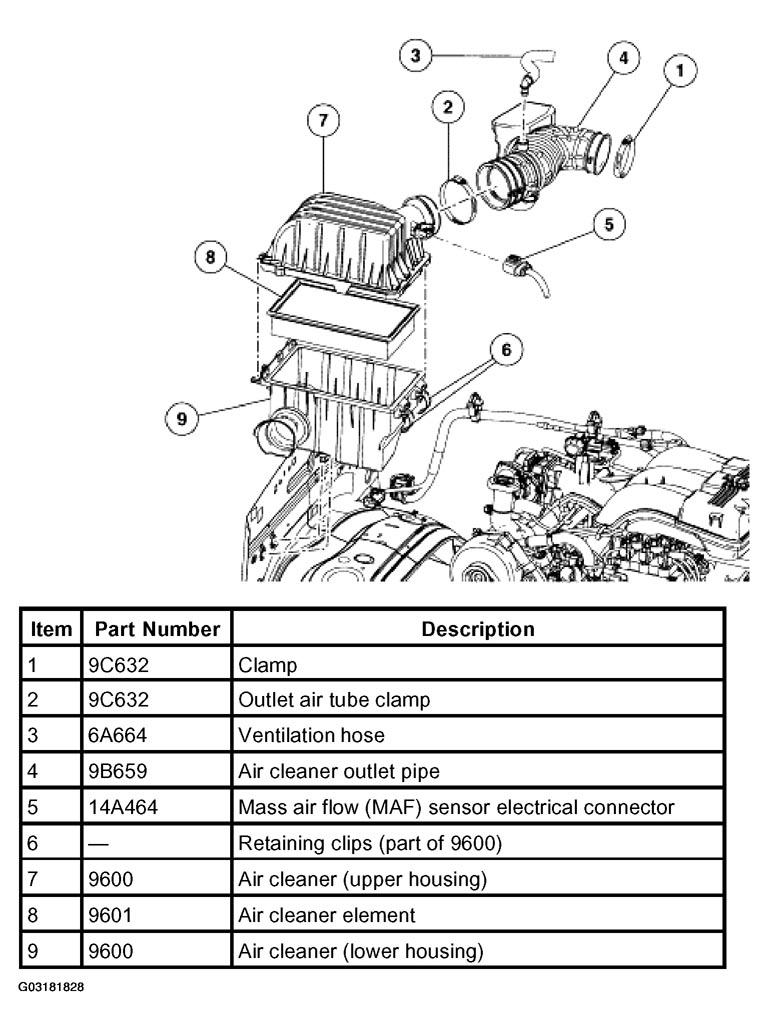

- Remove the parts in the order indicated in the following illustration and table. To remove individual parts, only carry out the listed steps.
REMOVAL STEPS
| Part |
Steps |
| Air cleaner outlet pipe |
1-4 |
| Air cleaner element |
6-8 |
| Air cleaner assembly |
2,5,9 |
- To install, reverse the removal procedure.
Courtesy of FORD MOTOR CO.
