Removal and Installation

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

Drain the cooling system. For additional information, refer to COOLING SYSTEM DRAINING, FILLING AND BLEEDING .
Remove the cooling fan and fan shroud. For additional information, refer to refer to RADIATOR, COOLING FAN AND SHROUD .
Rotate the tensioner clockwise and remove the belt.

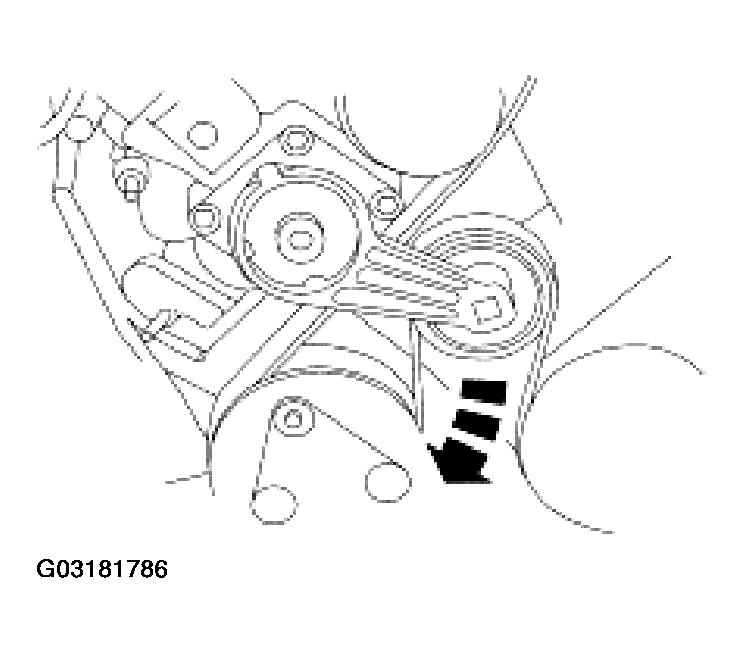

Fig 1: Rotating Tensioner Clockwise
Courtesy of FORD MOTOR CO.
Remove the parts in the order indicated in the following illustration and table.

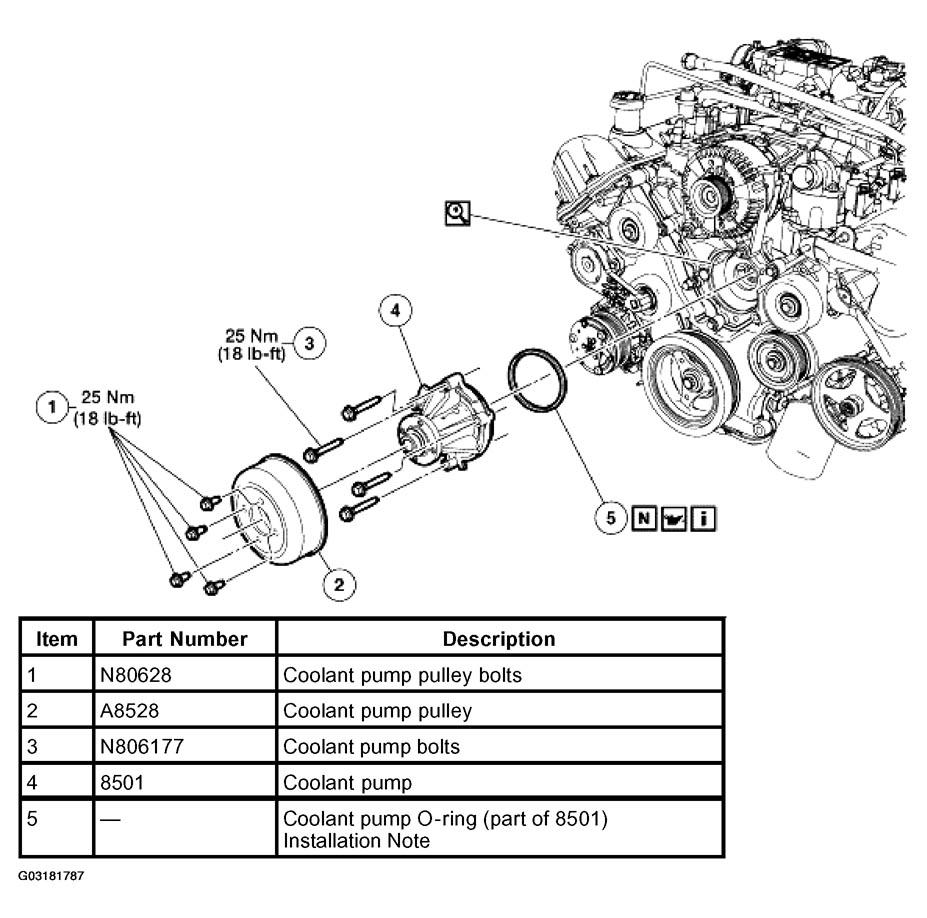

Fig 2: Identifying Water Pump Removing Sequence
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
Fill and bleed the cooling system. For additional information, refer to COOLING SYSTEM DRAINING, FILLING AND BLEEDING .
