Item 11: Transmission Cooler and A/C Tube Installation Note
WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

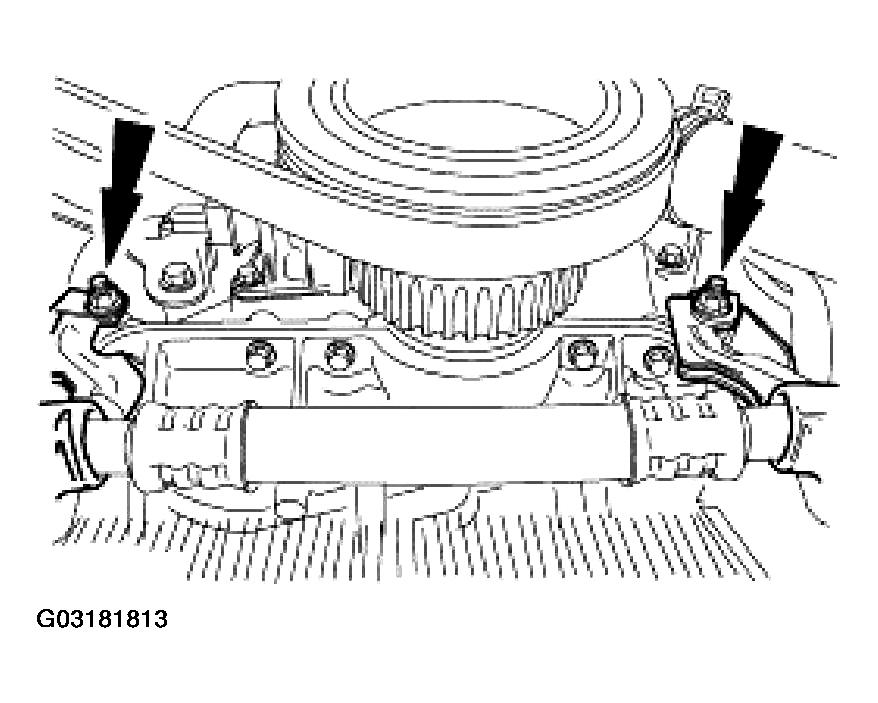

- Install the A/C tube brackets to the engine front cover.
- Connect the transmission cooler tubes.
- If equipped, install and tighten the screw clamp from the hose.

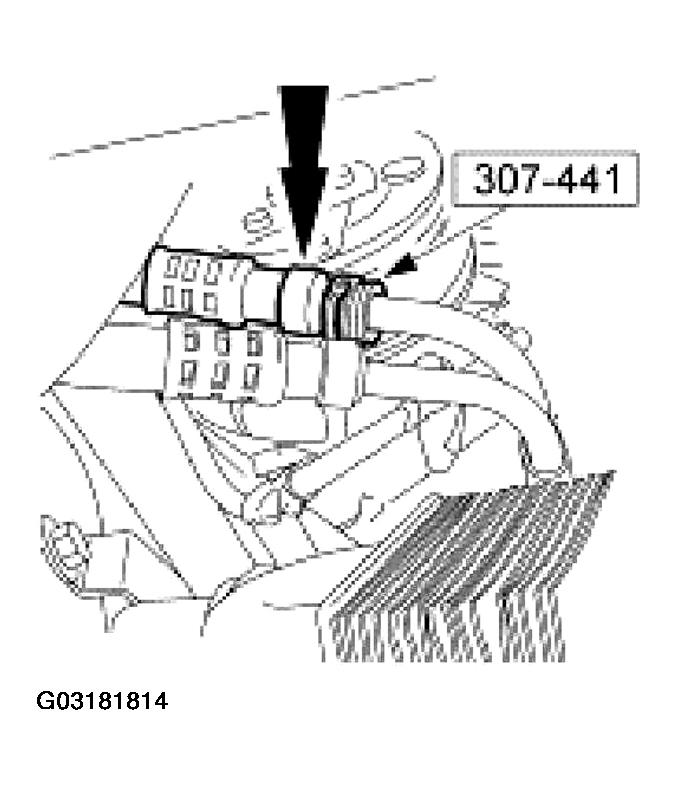

- Using the special tool, connect the quick coupler.
- Install the safety retainers from the transmission cooler tubes.
