Removal and Installation

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the air cleaner assembly and air cleaner outlet pipe. For additional information, refer to INTAKE AIR, FUEL CHARGING, STARTING AND ENGINE ELECTRONICS -4.6L (2V) .
  2. Remove the parts in the order indicated in the following illustrations and tables.
    Fig 1: Removing Valve Cover RH (1 Of 2)
    G03181088Courtesy of FORD MOTOR CO.

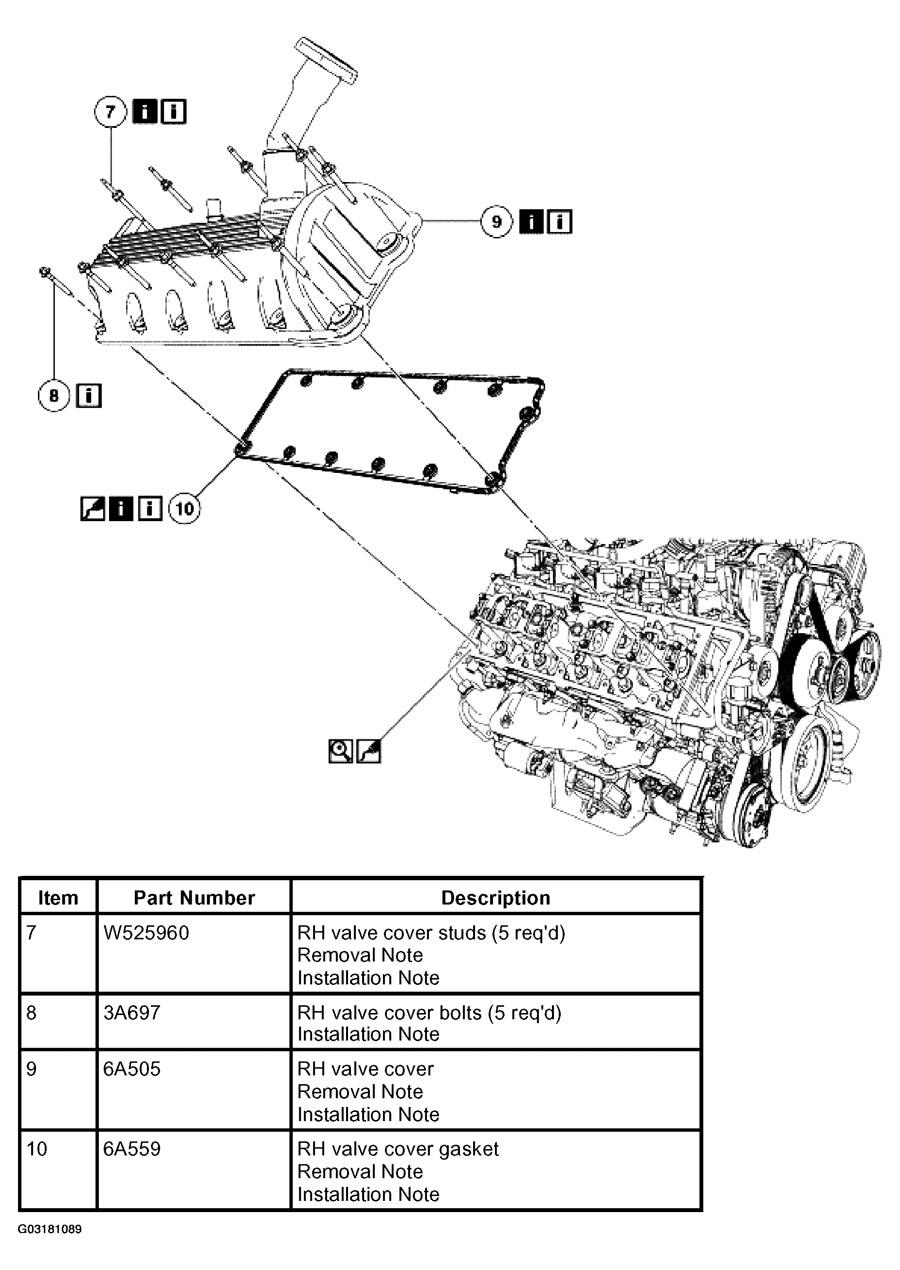

    Fig 2: Removing Valve Cover RH (2 Of 2)
    G03181089Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
