Item 7: RH Valve Cover Studs Removal Note

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect then RH engine wiring harness retainers from the valve cover studs and position the harness aside.

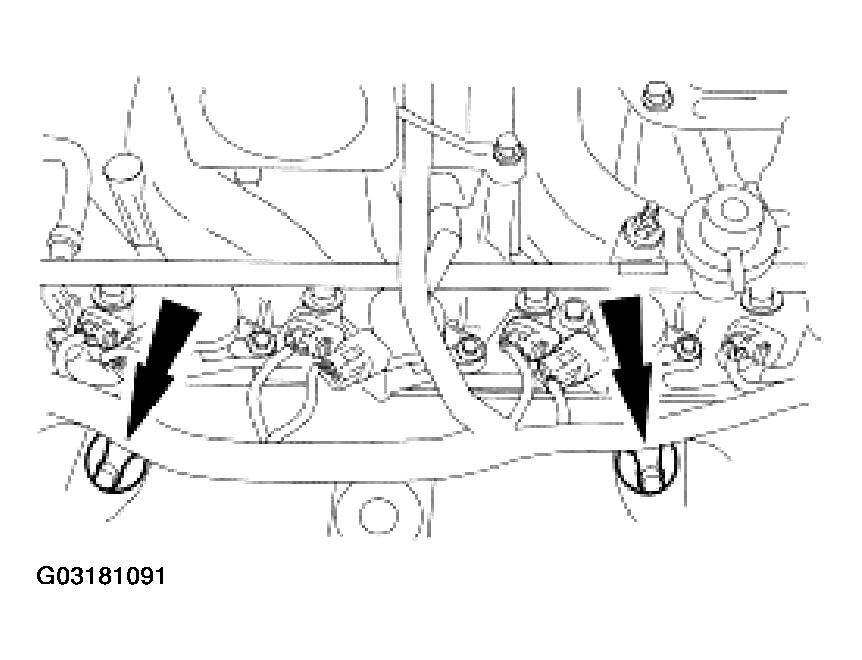

    Fig 1: Disconnecting RH Valve Cover Studs
    G03181091Courtesy of FORD MOTOR CO.
